Installation Procedure

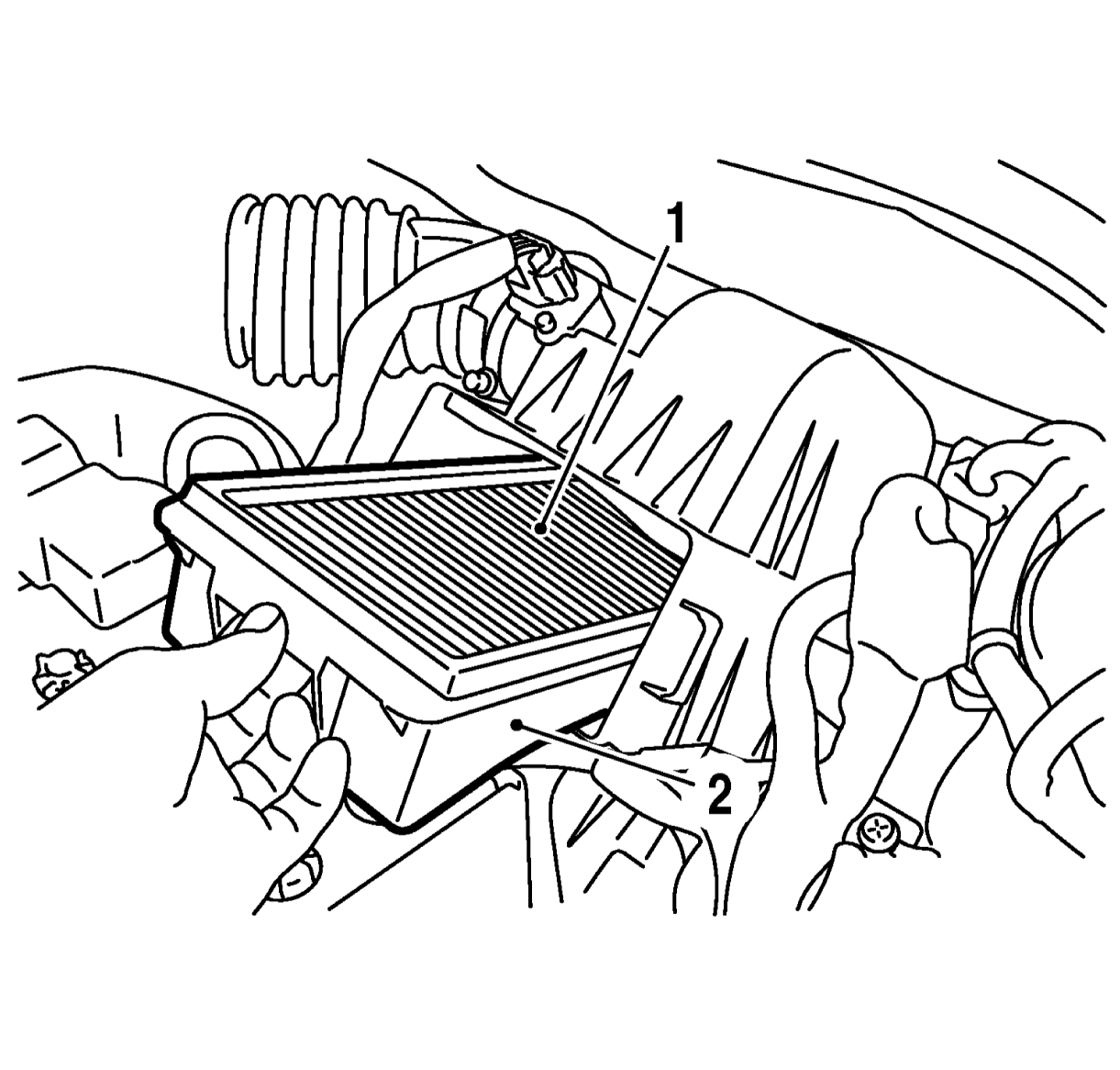

  1. Install the air cleaner element to the holder.
  2. Install the air cleaner element and holder assembly.
    GM3714202Courtesy of GENERAL MOTORS COMPANY

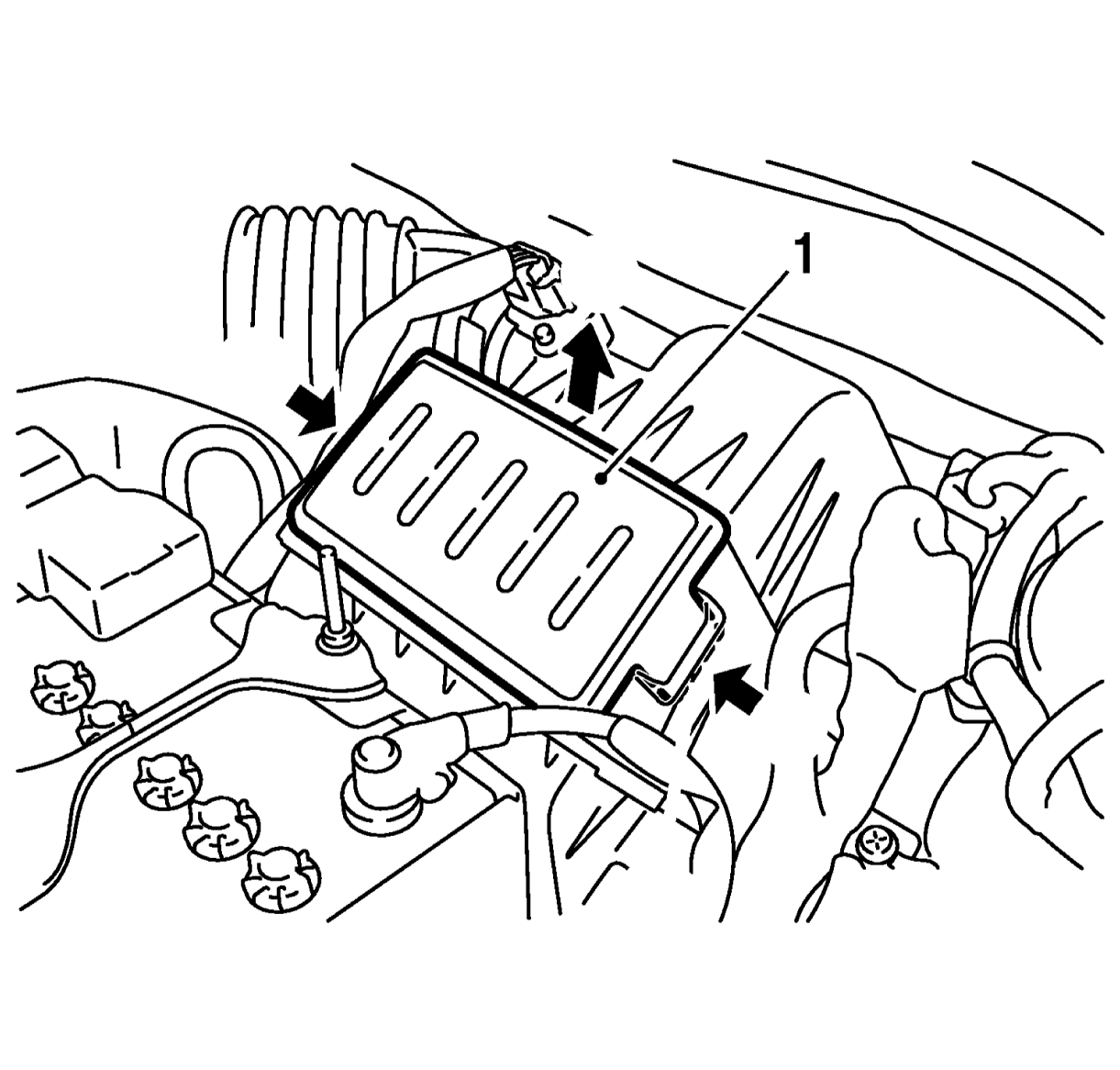

  3. Snap the air cleaner element cover into place.
    GM3714185Courtesy of GENERAL MOTORS COMPANY
