Installation Procedure

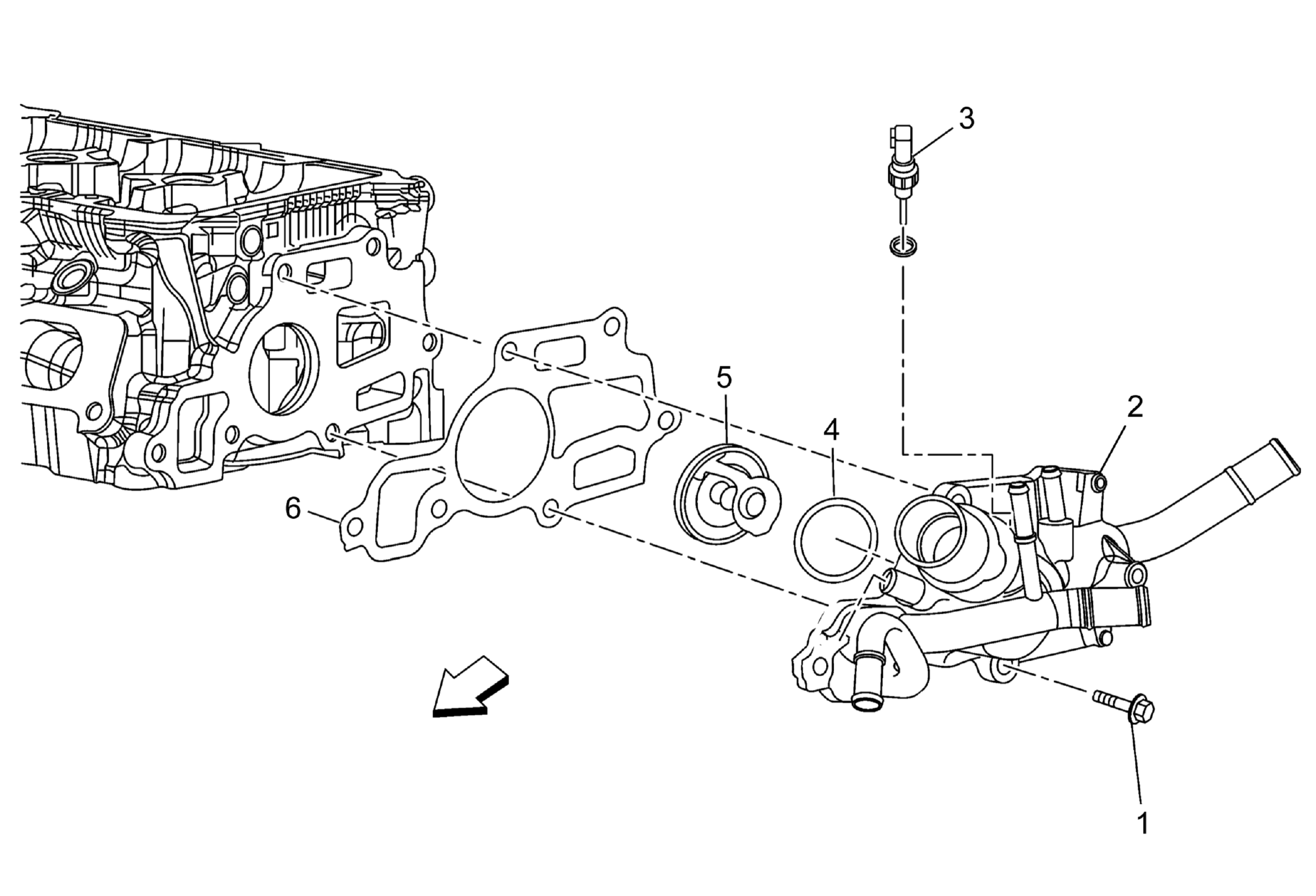

    Fig 1: Water Outlet Replacement Components With Torque Specifications
    GM3816229Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

  1. Engine Coolant Temperature Sensor - Tighten24 N.m (18 lb ft)
  2. Connect the engine coolant temperature sensor electrical connector.
  3. Air Cleaner Assembly Replacement  - Install
  4. Fill the cooling system to the proper level. Cooling System Draining and Filling
