Removal Procedure

  1. Intake Manifold Replacement - Remove
  2. Ignition Coil Electrical Connector - Disconnect

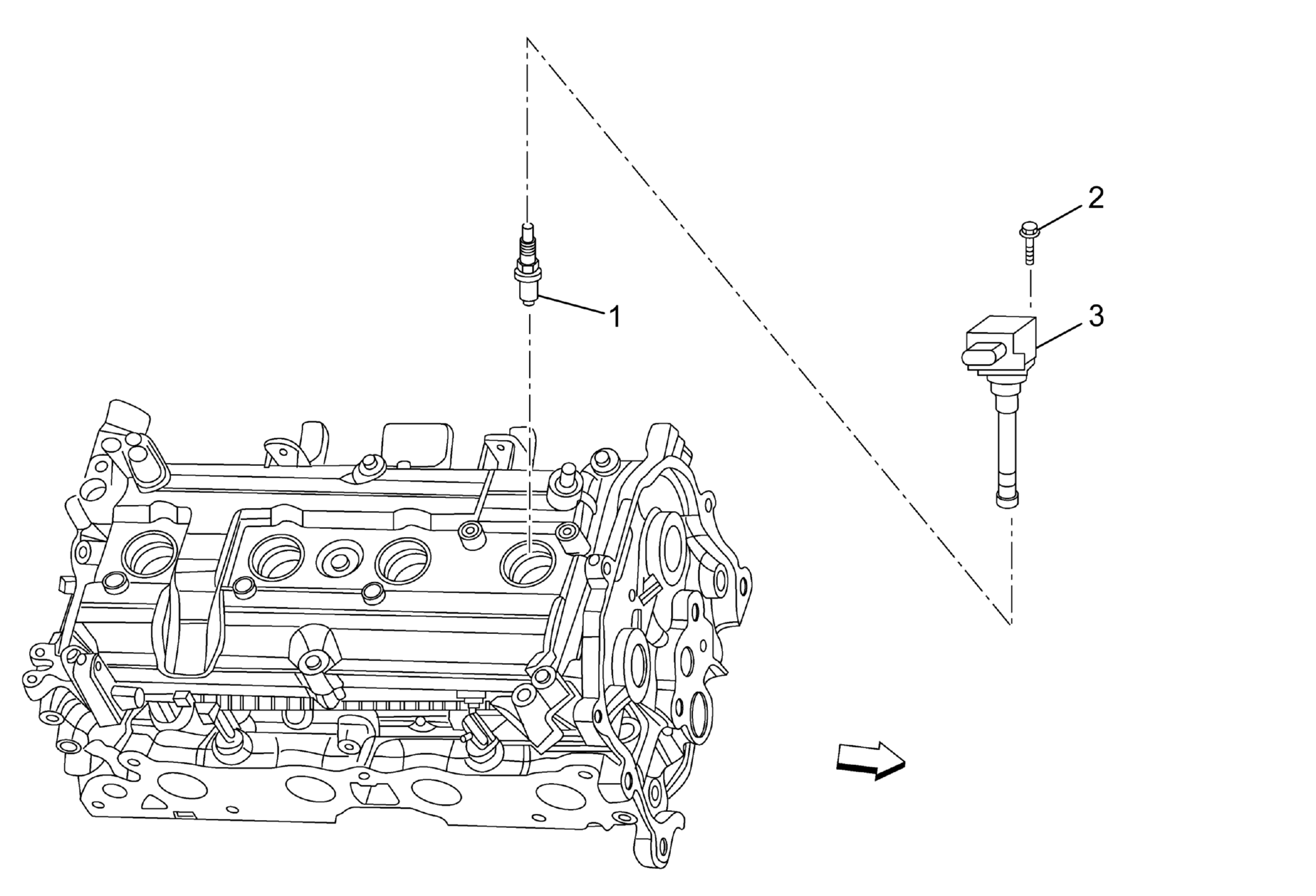

    GM3714300Courtesy of GENERAL MOTORS COMPANY
  3. Ignition Coil Bolt - Remove
  4. Ignition Coil - Remove
