Home › Chevrolet › 2017 › City Express LS › Repair and Diagnosis › Engine Performance › System › Engine Controls And Fuel - 2.0L › Schematic Wiring Diagrams › Engine Controls Wiring Schematics › Fuel Controls - Fuel Pump Controls

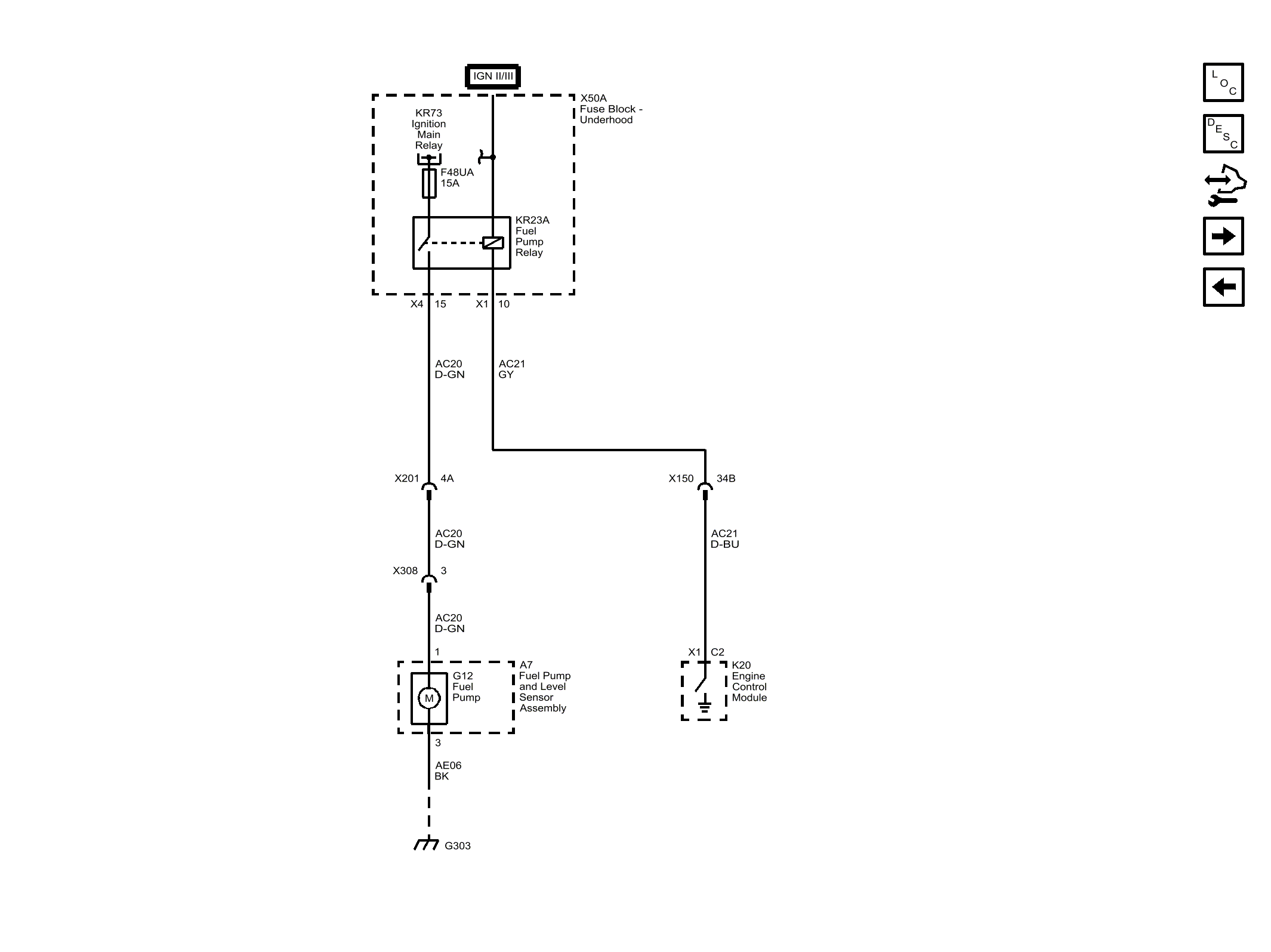

Fuel Controls - Fuel Pump Controls

GM4509973Courtesy of
