Transmission Control Module Replacement

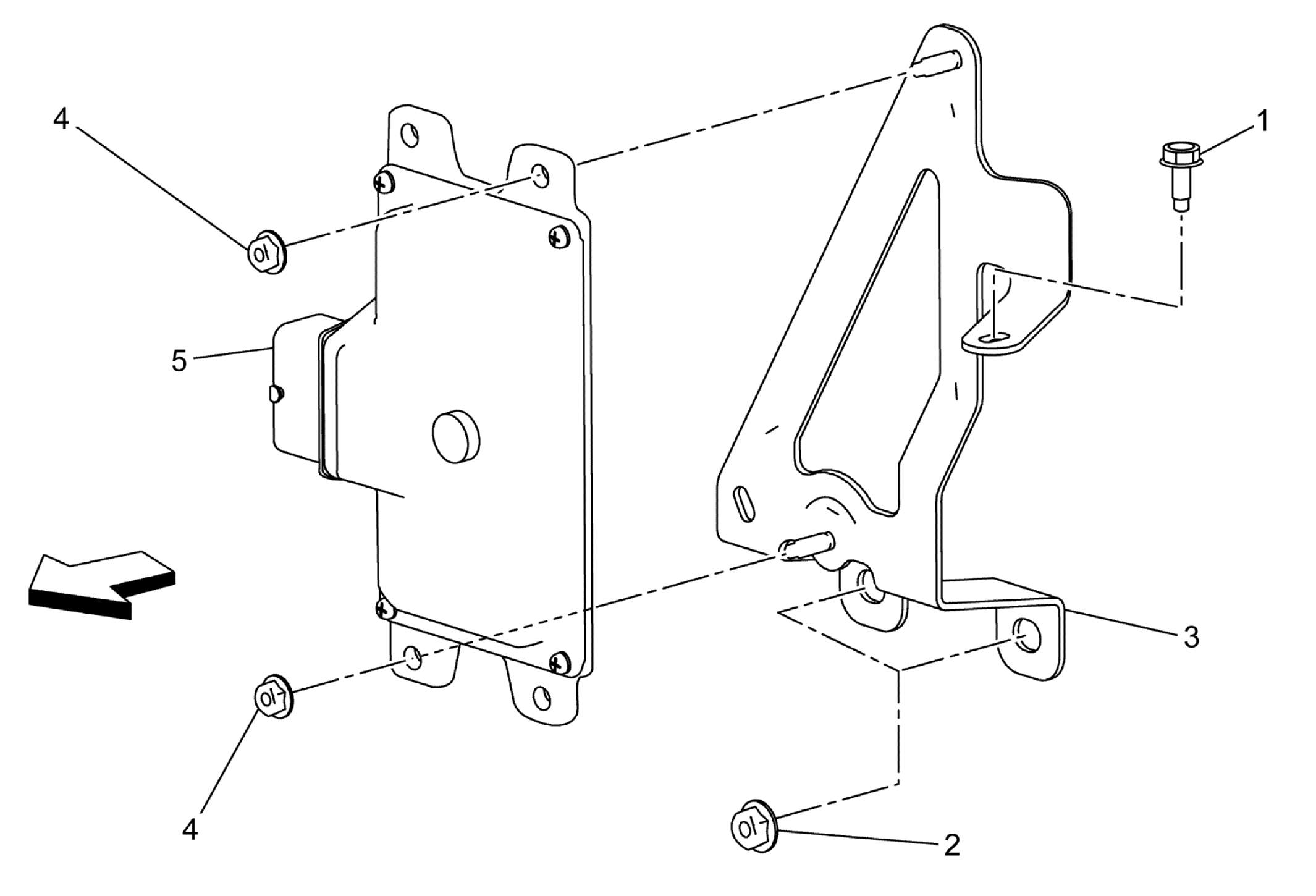

| Callout | Component Name |
|---|---|
| Preliminary Procedure Battery Negative Cable Disconnection and Connection
NOTE:
When replacing the transmission control module (TCM), save the TCM data before removing the module from the vehicle. Refer to Control Module References . |
|
| 1 | Transmission Control Module Bracket Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Transmission Control Module Bracket Fastener [2x] Tighten 5.5 N.m (49 lb in) |
| 3 | Transmission Control Module Bracket |
| 4 | Transmission Control Module Bracket Fastener [2x] Tighten 5.5 N.m (49 lb in) |
| 5 | Transmission Control Module Procedure Disconnect the transmission control module electrical connector. For programming and setup, refer to Control Module References . |
