Front Frame Heat Shield Replacement

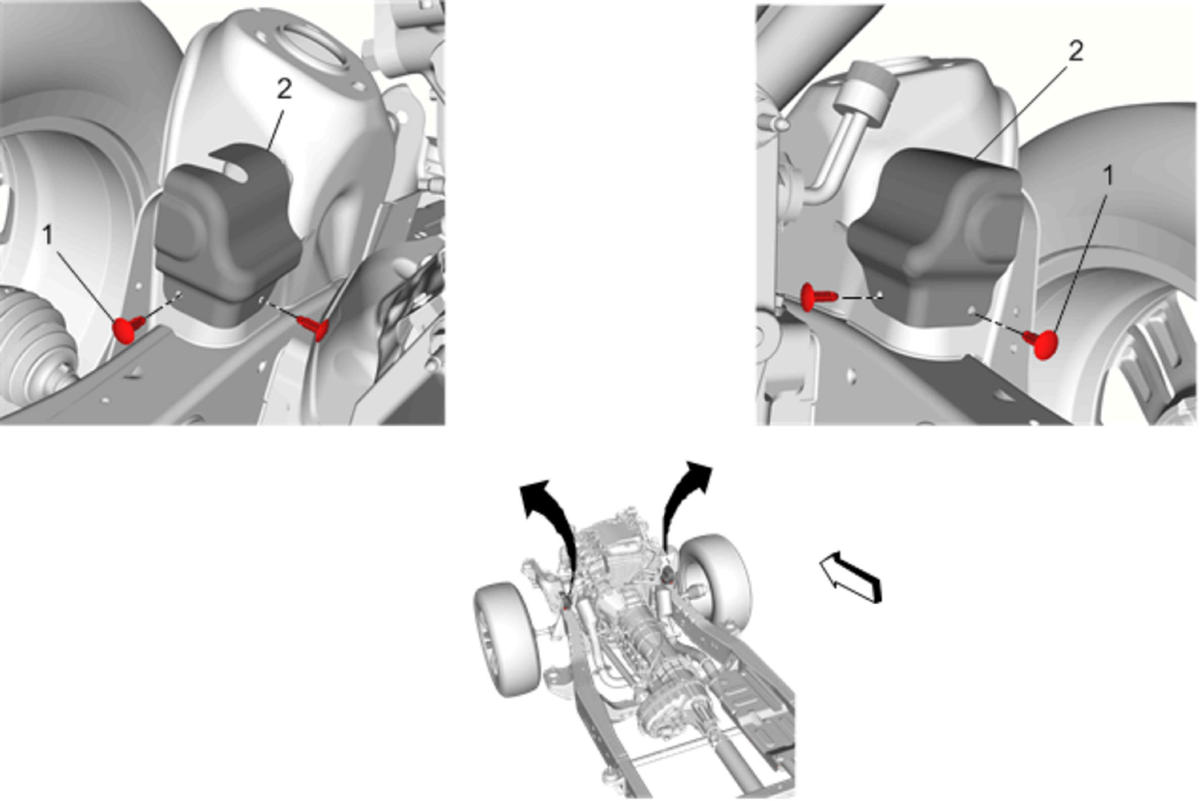

Fig 1: Front Frame Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Front Frame Heat Shield Plastic Retainers (Qty: 4)
2	Front Frame Heat Shield
