Engine Wiring Harness Fuse Block Cover Replacement
Engine Wiring Harness Fuse Block Cover Replacement

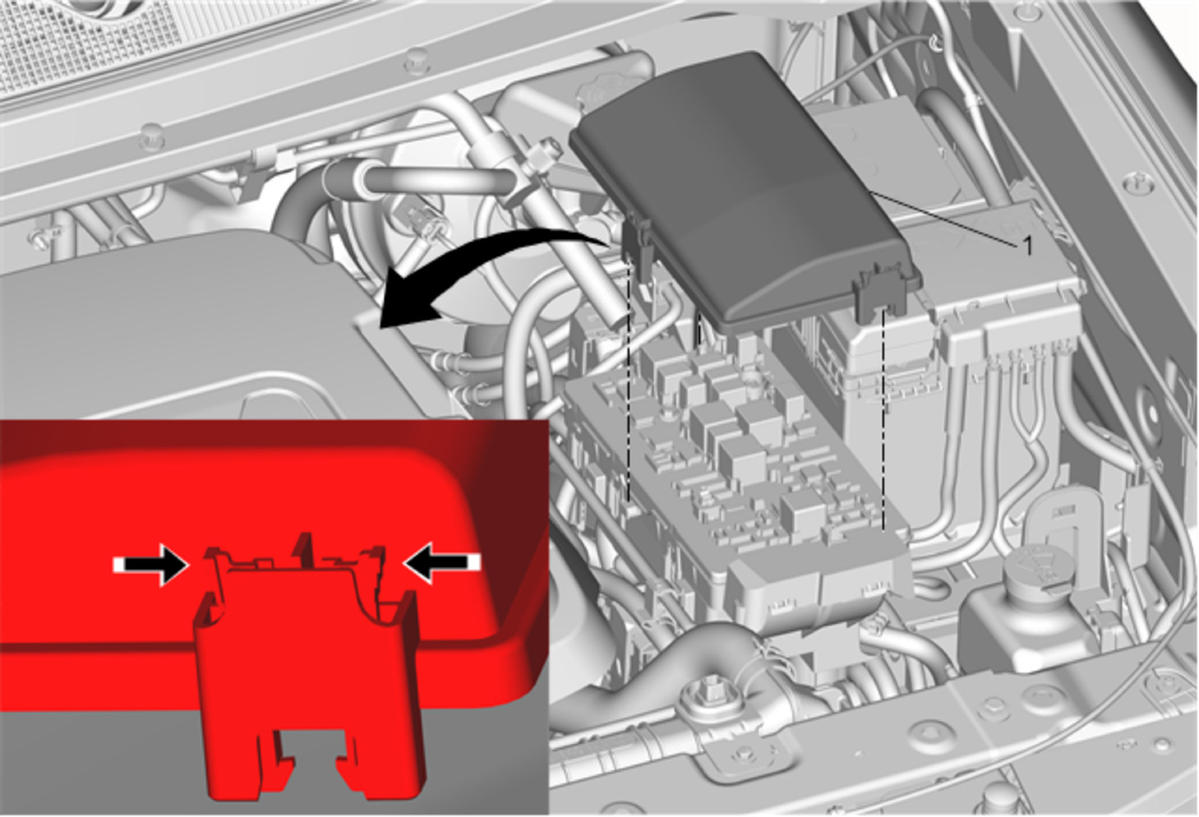

Fig 1: Engine Wiring Harness Fuse Block Cover
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Engine Wiring Harness Fuse Block Cover
Procedure
Squeeze the 3 tabs arrows to release cover.
