Front Seat Belt Buckle Replacement

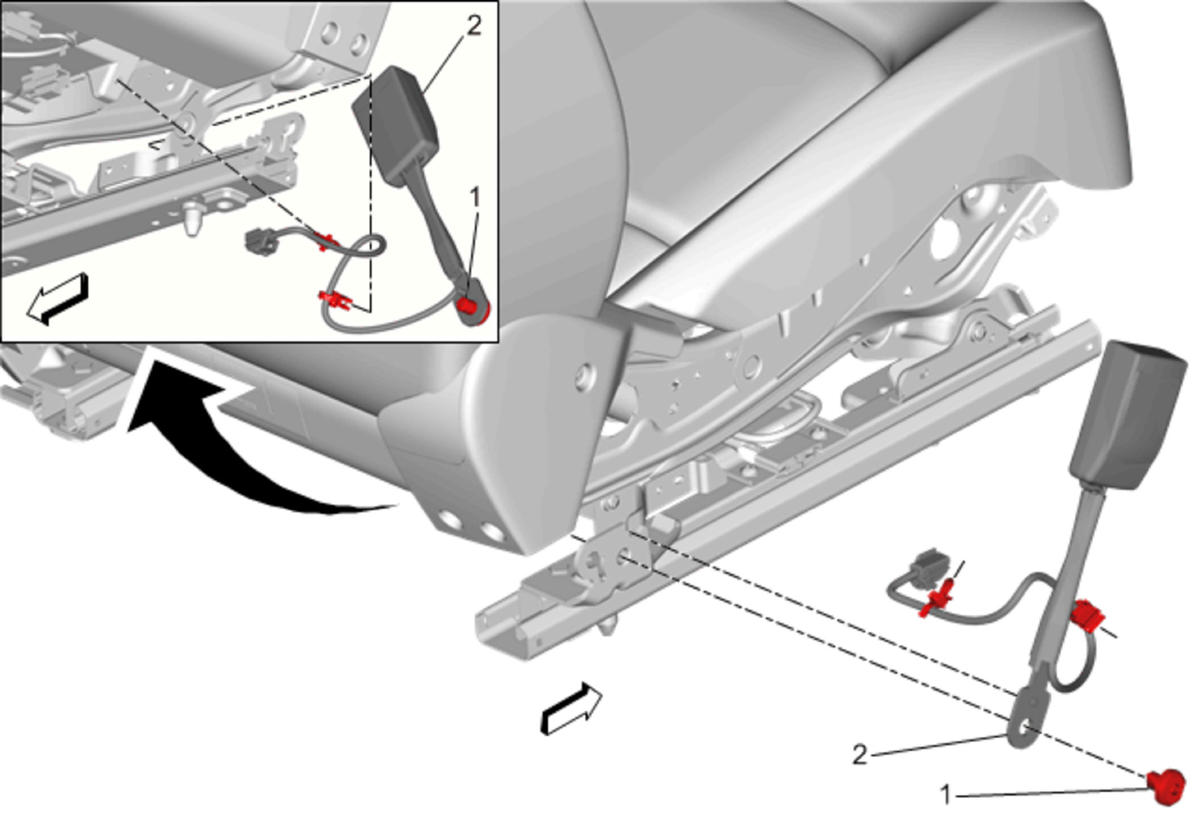

Fig 1: Front Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Front Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Buckle Assembly Procedure Disengage the retainers from the seat frame. Disconnect the electrical connector(s). NOTE: Driver side front seat belt buckle shown, passenger side seat belt buckle similar.

Callout

Component Name

Preliminary Procedure
Remove driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .

Front Seat Belt Buckle Fastener

CAUTION:

Tighten
45 N.m (33 lb ft)

Front Seat Belt Buckle Assembly

Procedure

NOTE:

Driver side front seat belt buckle shown, passenger side seat belt buckle similar.
