Corvette Stingray, 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System And Remote Functions
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Keyless Entry - Keyless Entry Control Module
Keyless Entry - Keyless Entry Control Module

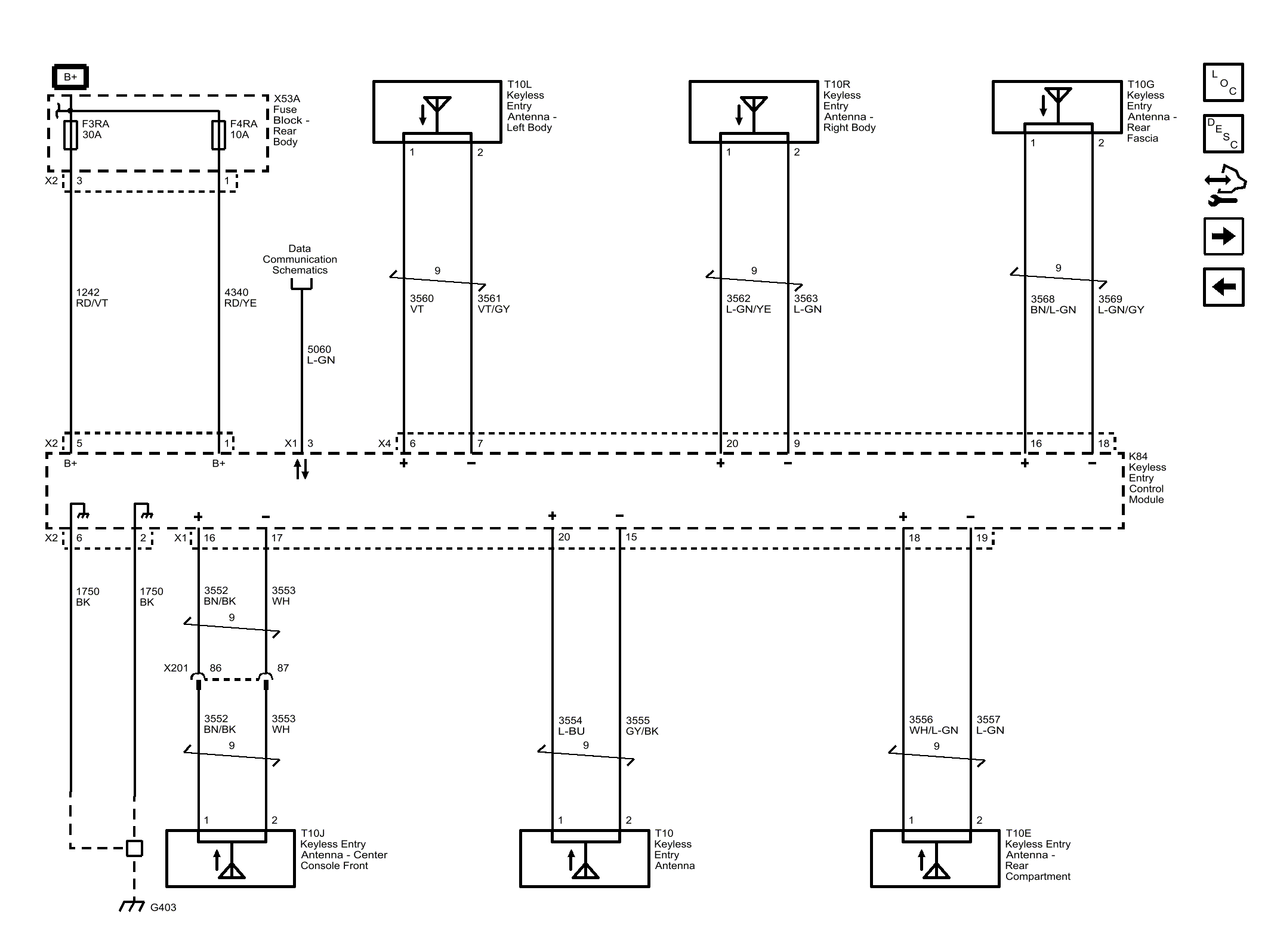

Fig 1: Keyless Entry - Keyless Entry Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
