Shift Lock Control Wiring Schematics
›
Shift Lock (M5U)
Shift Lock (M5U)

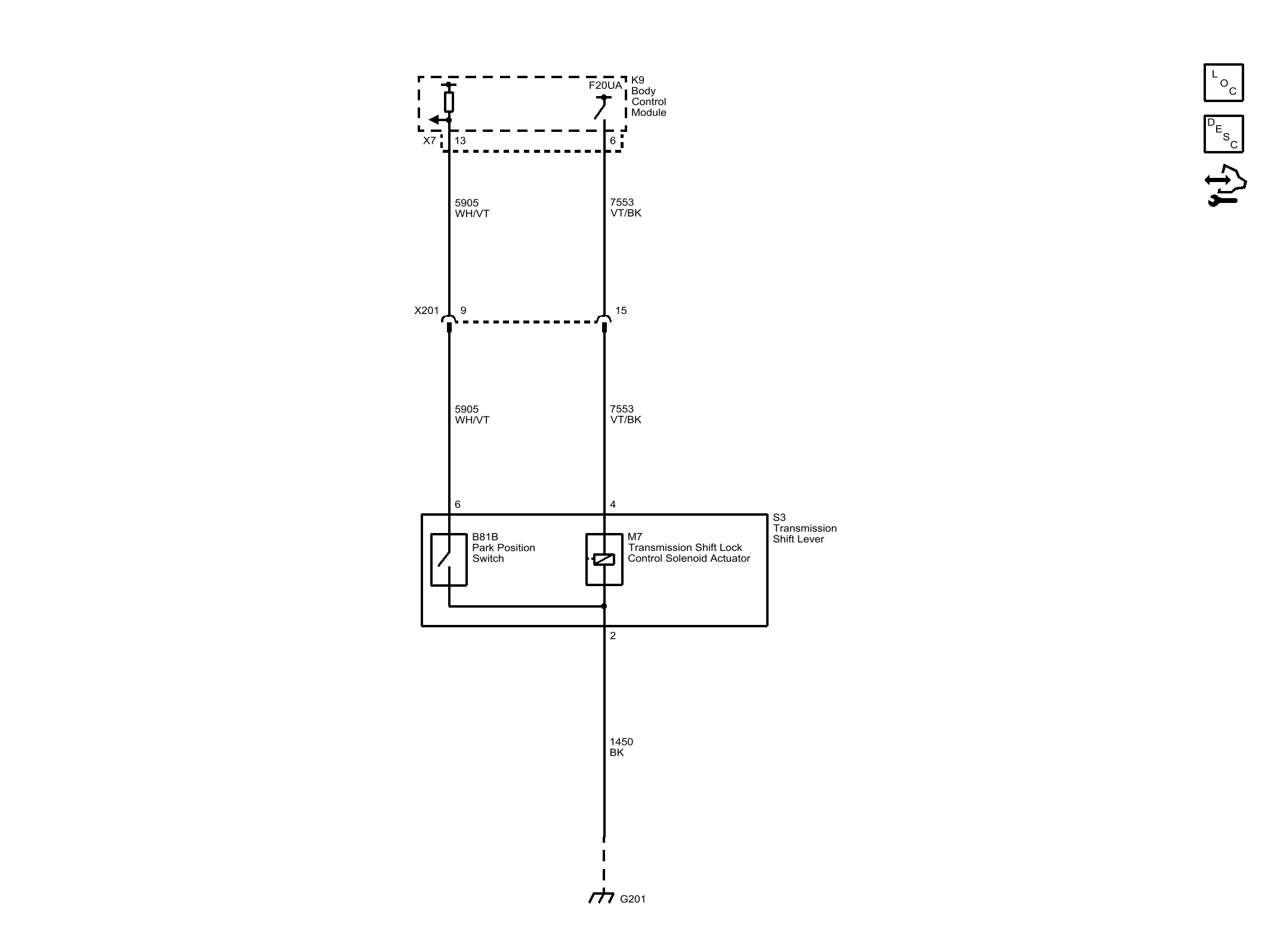

Fig 1: Shift Lock (M5U)
Courtesy of GENERAL MOTORS COMPANY
