Engine Control Module Bracket Replacement

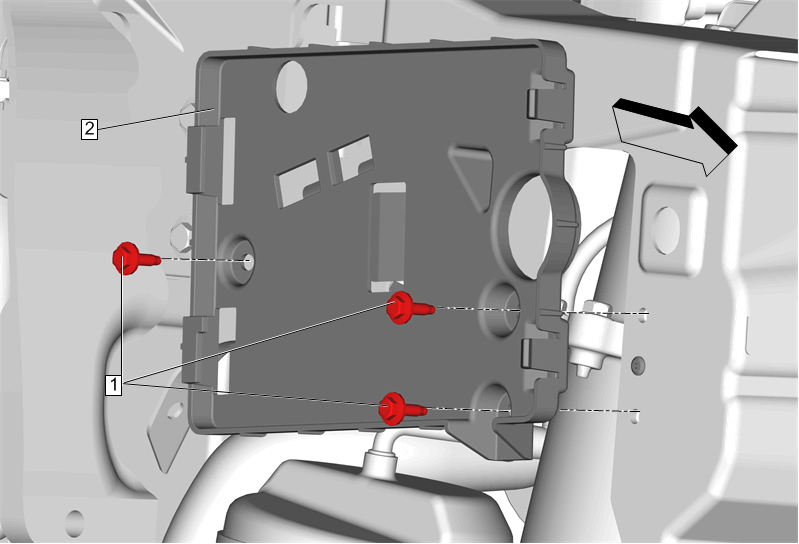

Fig 1: Engine Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Engine Control Module Replacement
1	Engine Control Module Bracket Bolt (Qty: 3) Tighten  6 N.m (53 lb in)
2	Engine Control Module Bracket
