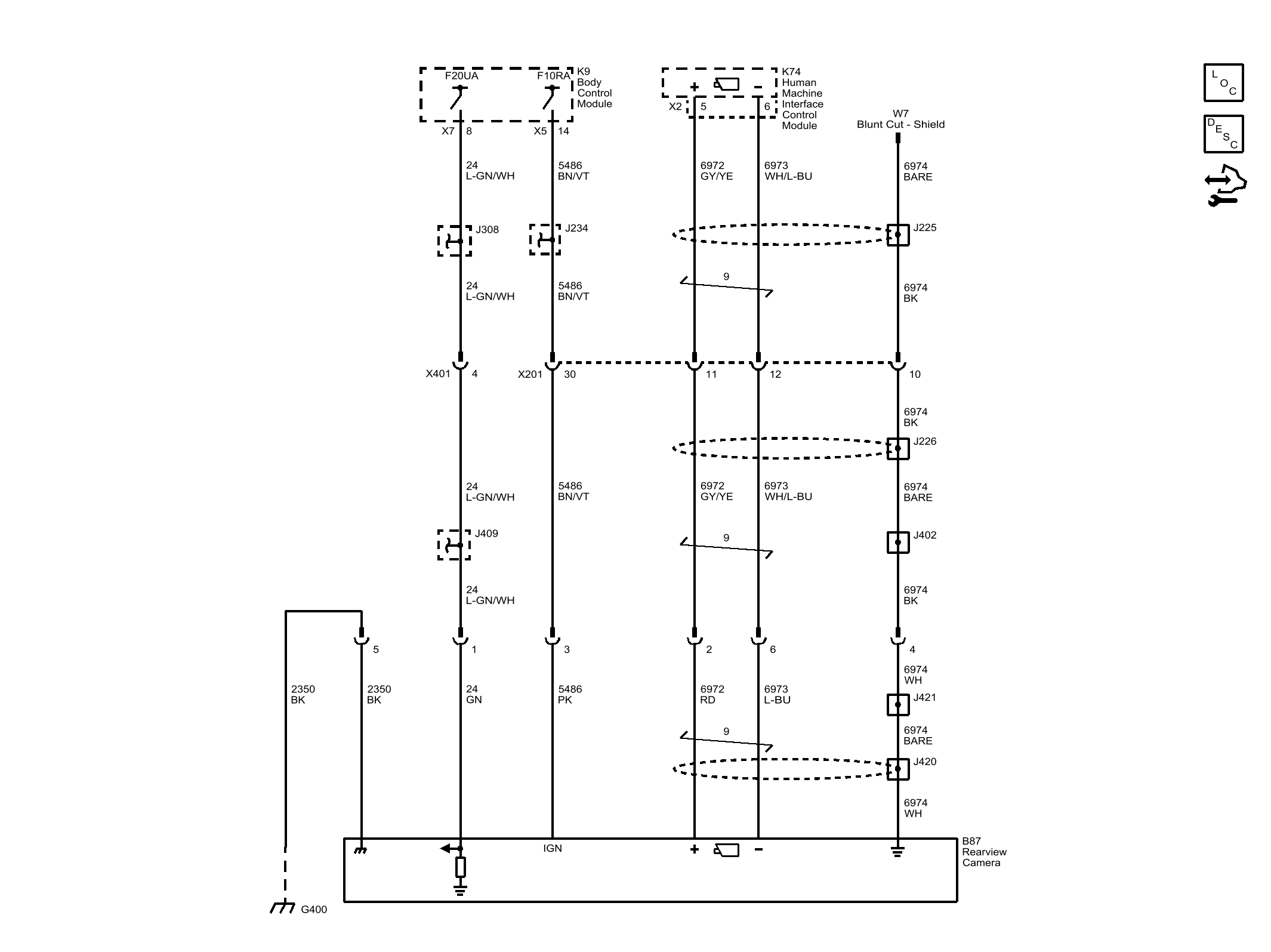

Home › Chevrolet › 2017 › Corvette Z06, 2D Convertible, Automatic Trans › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Object Detection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rearview Camera (UVC)
