Chevrolet
›
2017
›
Corvette Z06, 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Component Locations
›
Component Locator - Electrical Center Identification Views
›
Electrical Center Identification Views
›
Notes
Electrical Center Identification Views: Notes

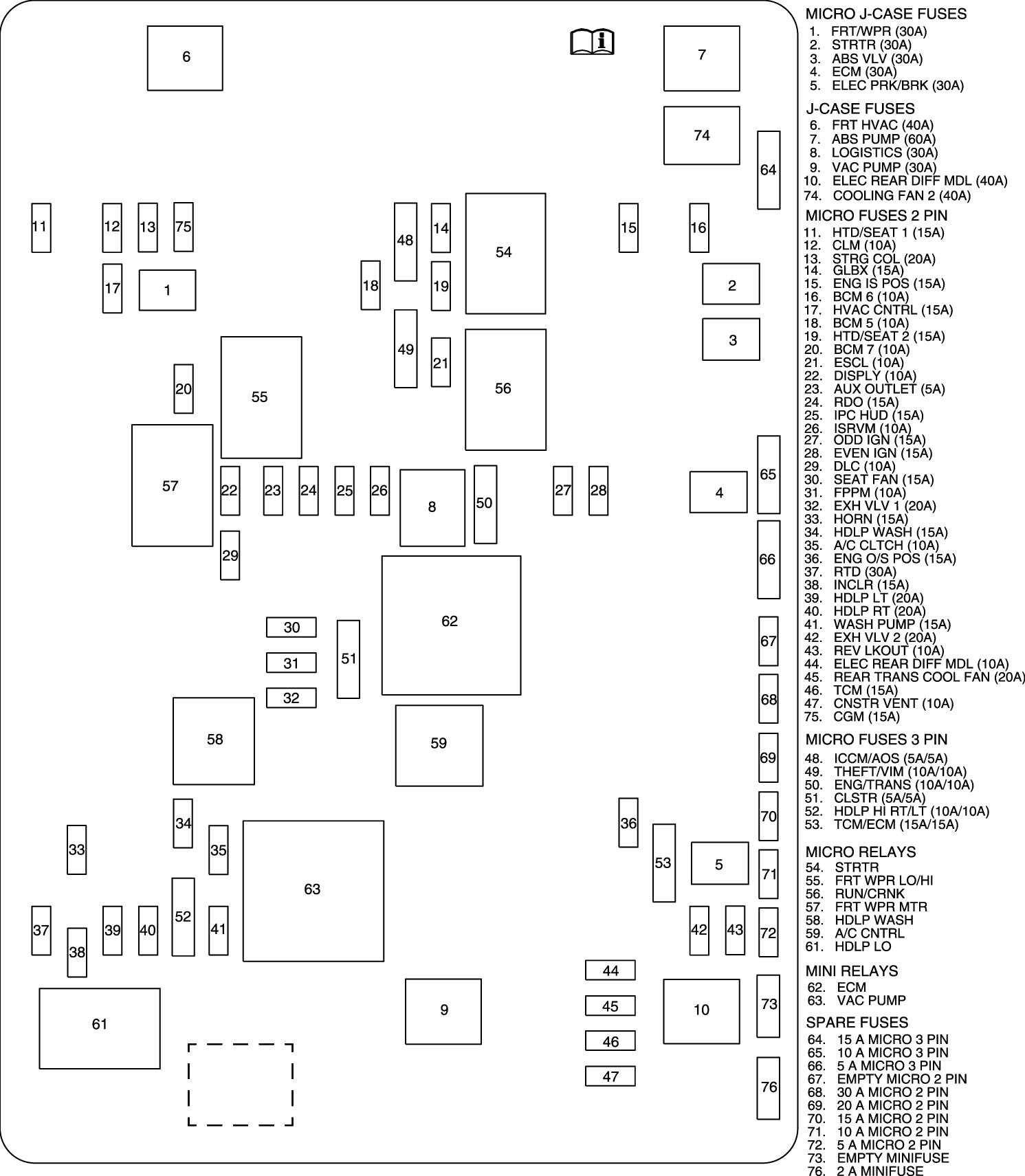

Fig 1: X50A Fuse Block - Underhood Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
