Steering Column Control Module Replacement

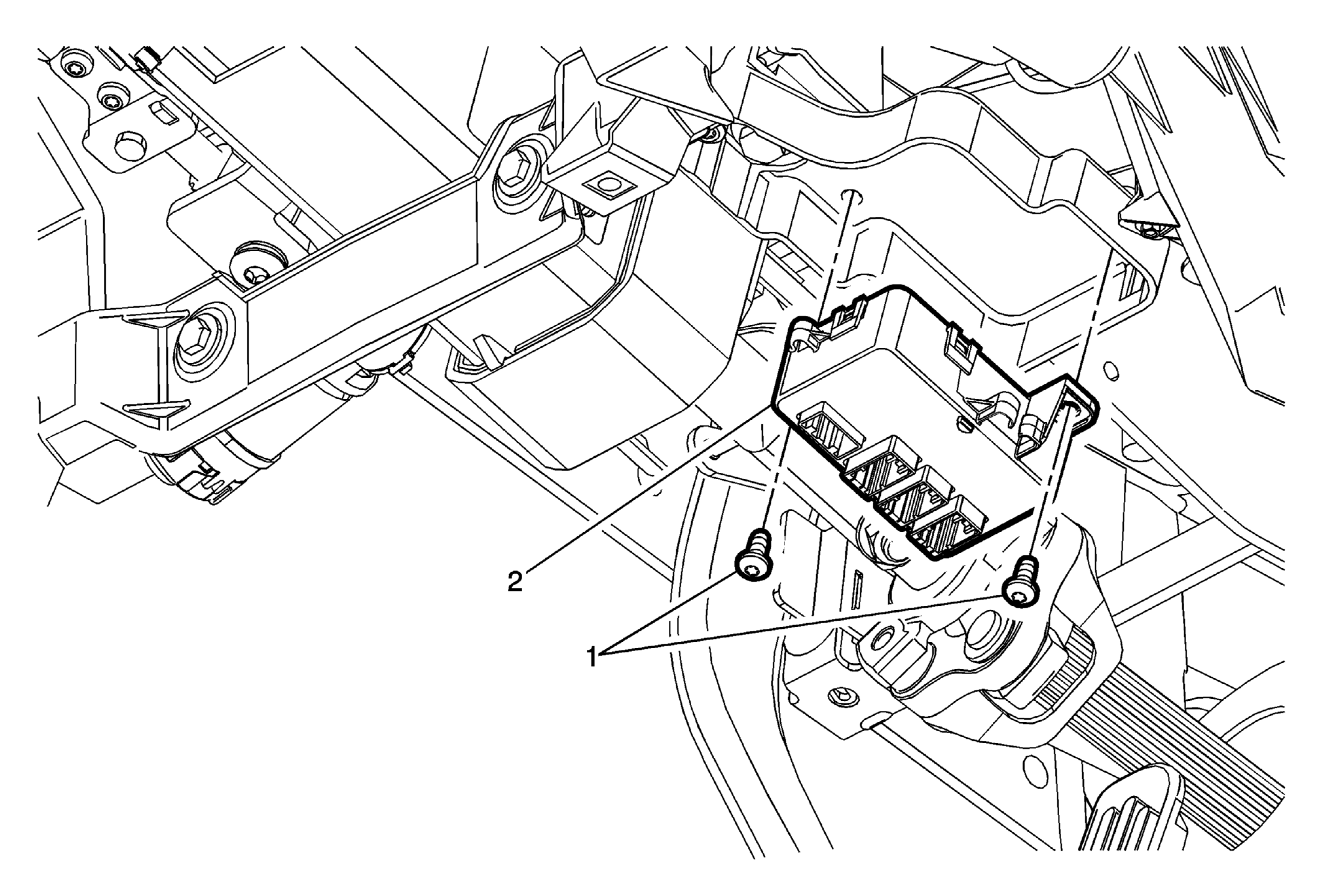

Fig 1: Steering Column Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Instrument Panel Insulator Panel Replacement - Left Side
1	Steering Column Control Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  7 N.m (62 lb in)
2	Steering Column Control Module
