Fuel Tank Pressure Sensor Replacement

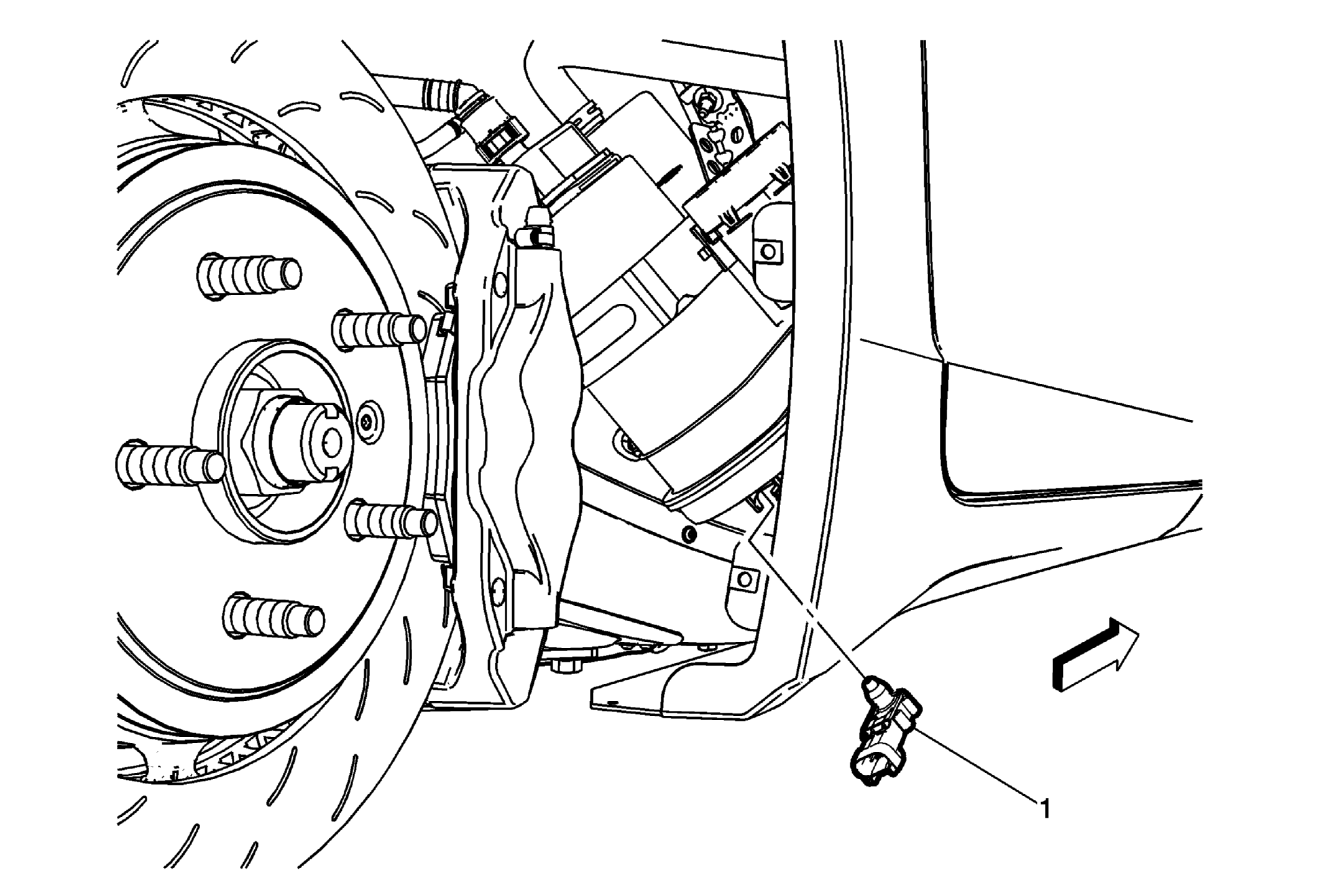

Fig 1: Fuel Tank Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
1	Fuel Tank Pressure Sensor Procedure  Disconnect the fuel tank pressure sensor electrical connector.
