Power, Ground, Serial Data, and Controls

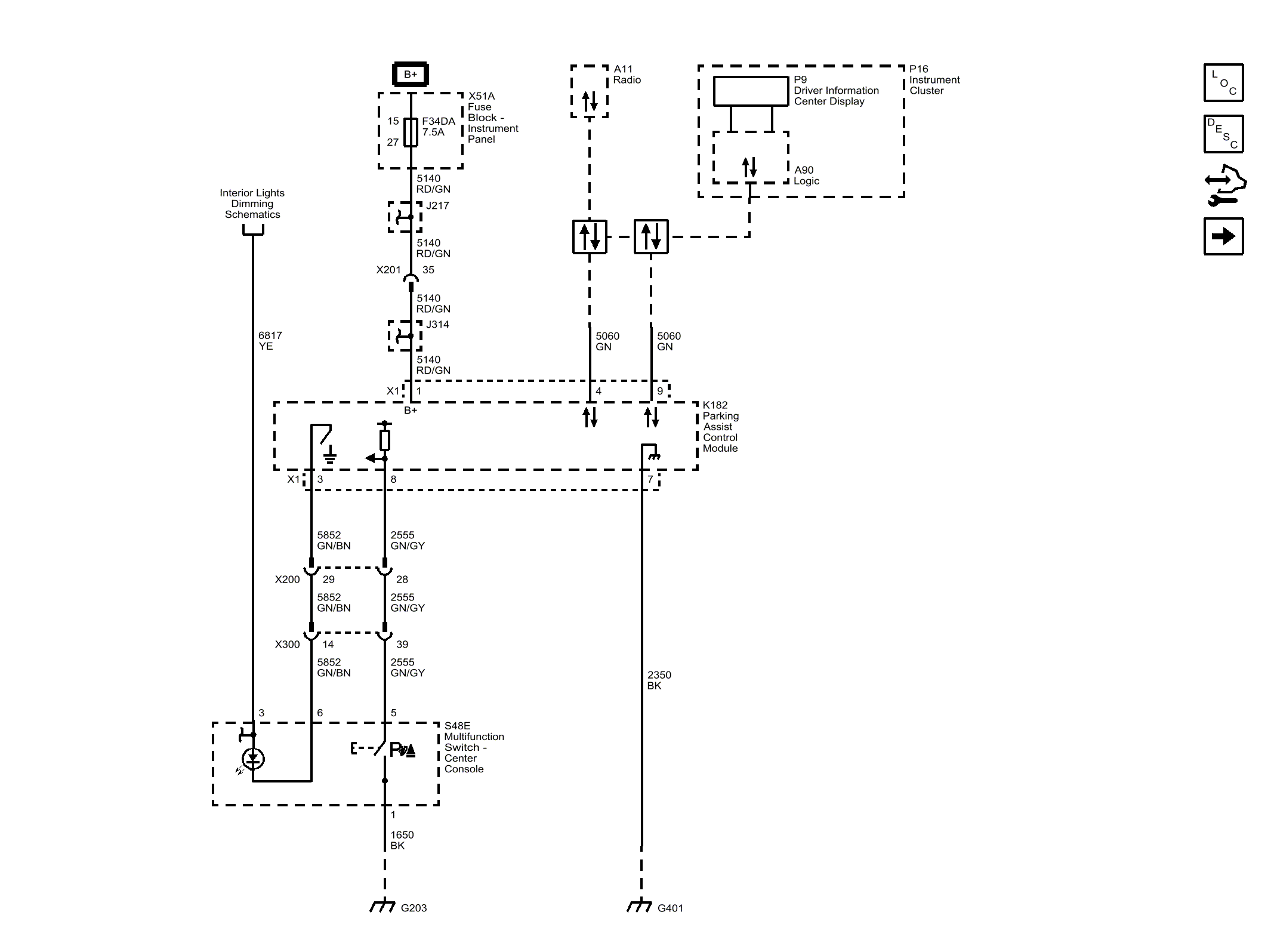

Fig 1: Power, Ground, Serial Data, and Controls
GM4335050Courtesy of GENERAL MOTORS COMPANY
