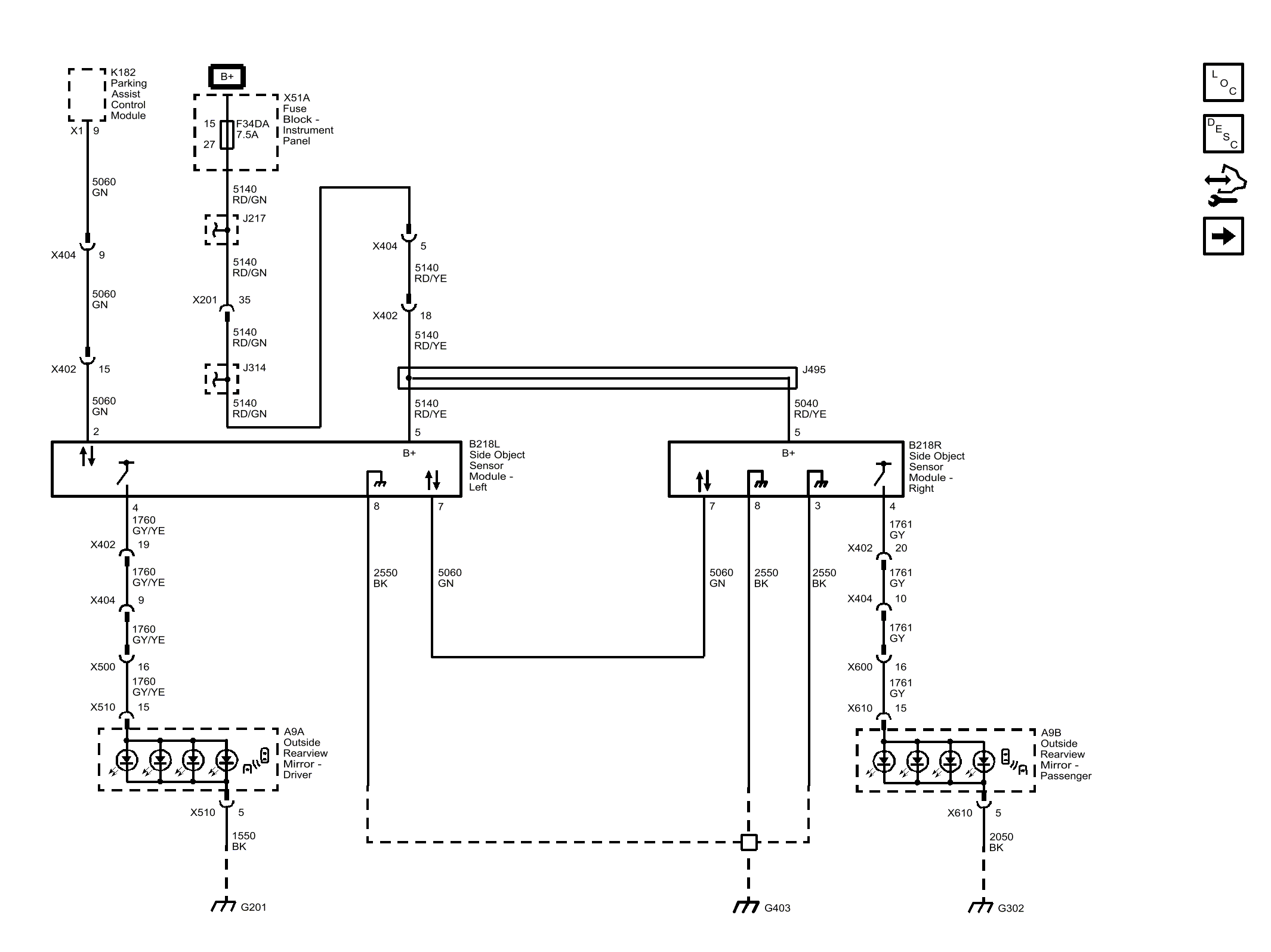

Home › Chevrolet › 2017 › Cruze LS, Automatic Trans › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Side Object Detection (UKC)
