Rearview Camera (Notchback) (UVC)
Rearview Camera (Notchback) (UVC)

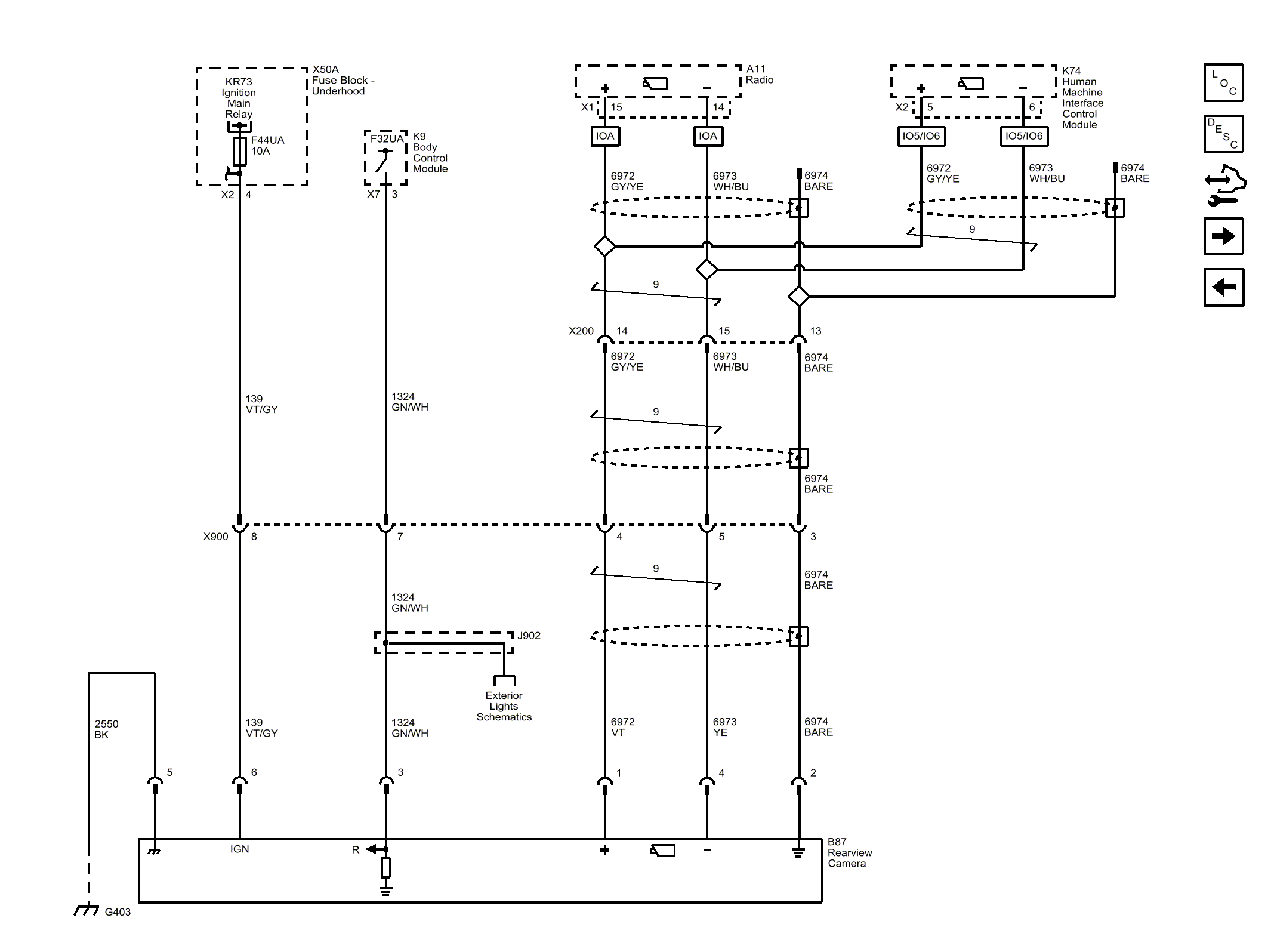

Fig 1: Rearview Camera (Notchback) (UVC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
