Communication Interface Module Battery Replacement

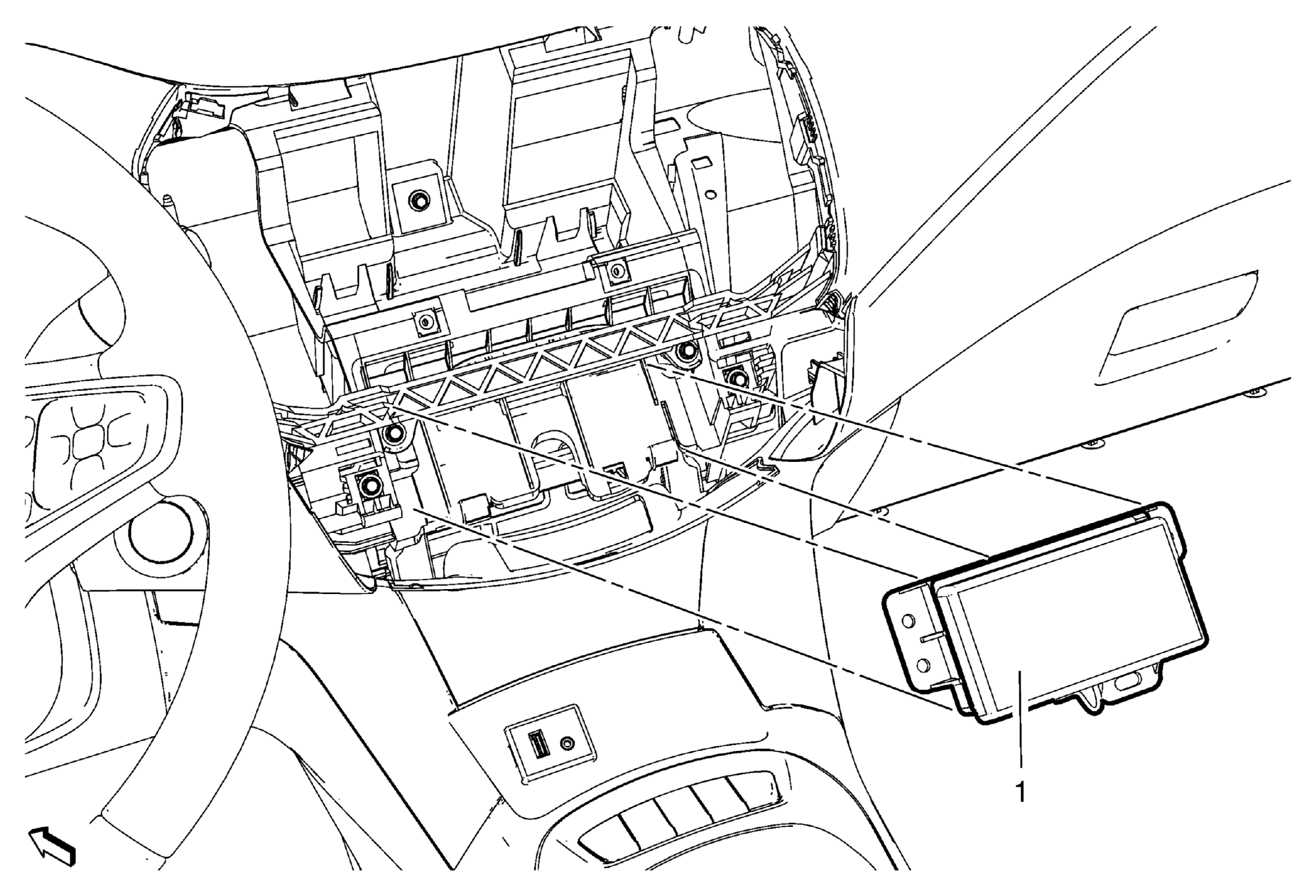

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Radio Control Assembly. Refer to Radio Control Assembly Replacement (IO5 or IO6)
1	Communication Interface Module Battery Procedure Unlock the retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove Radio Control Assembly. Refer to Radio Control Assembly Replacement (IO5 or IO6)

Communication Interface Module Battery

Procedure
