Rear Seat Heater Control Module Replacement

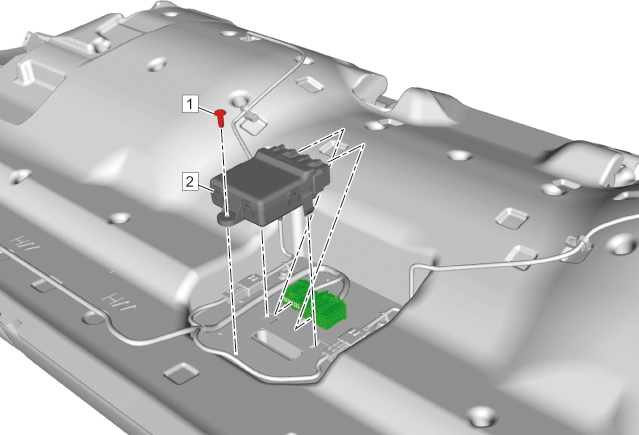

Fig 1: Rear Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Cushion Removal and Installation
1	Rear Seat Heater Control Module Fastener CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Rear Seat Heater Control Module Procedure Unlock the retaining tabs. Disconnect the electrical connectors.

Callout

Component Name

Rear Seat Heater Control Module Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Seat Heater Control Module

Procedure
