Rear Side Door Window Frame Front Applique Replacement

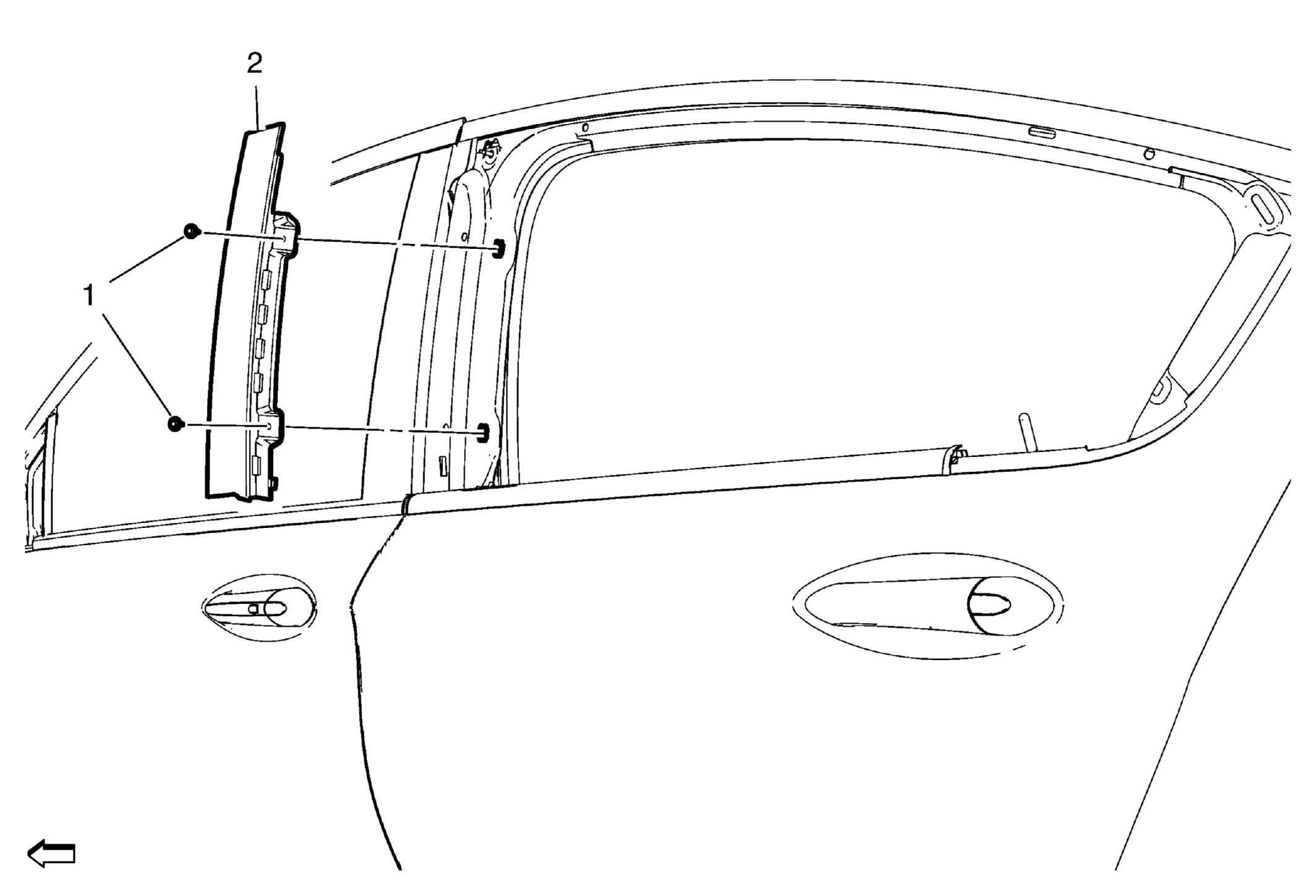

Fig 1: Rear Side Door Window Frame Front Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Side Door Window Weatherstrip Replacement
1	Rear Side Door Window Frame Front Applique Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Side Door Window Frame Front Applique
