Rear Side Door Window Replacement

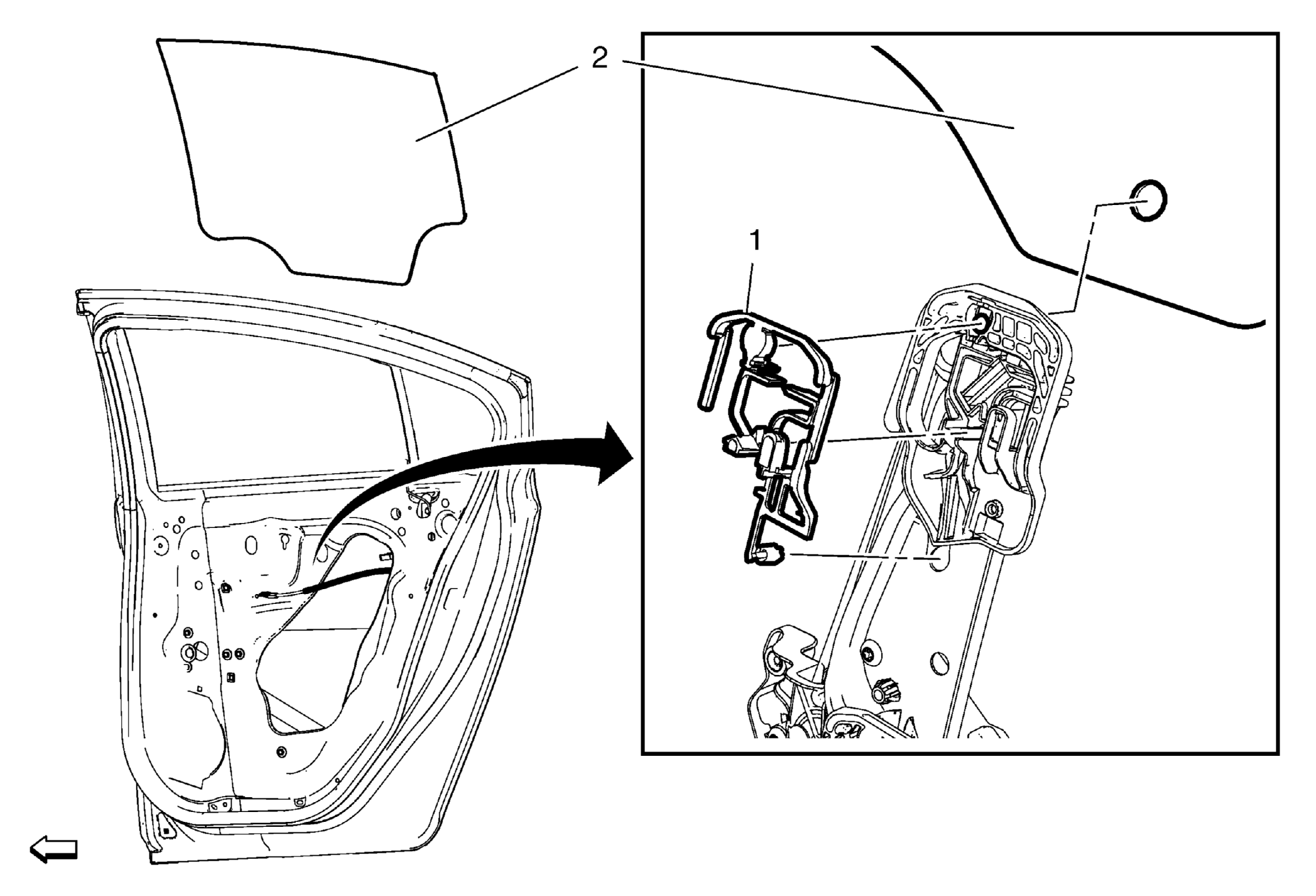

Fig 1: Rear Side Door Window
GM3665564Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Position the window approximately half way down in the door.
  2. Rear Side Door Water Deflector Replacement
  3. Rear Side Door Window Belt Reveal Molding Replacement
1 Rear Side Door Window Regulator Sash
2 Rear Side Door Window

Procedure

  1. Push the window regulator sash, pull upward to release the window from the sash.
  2. Rotate the front side door window as necessary to remove it from the front side door.
