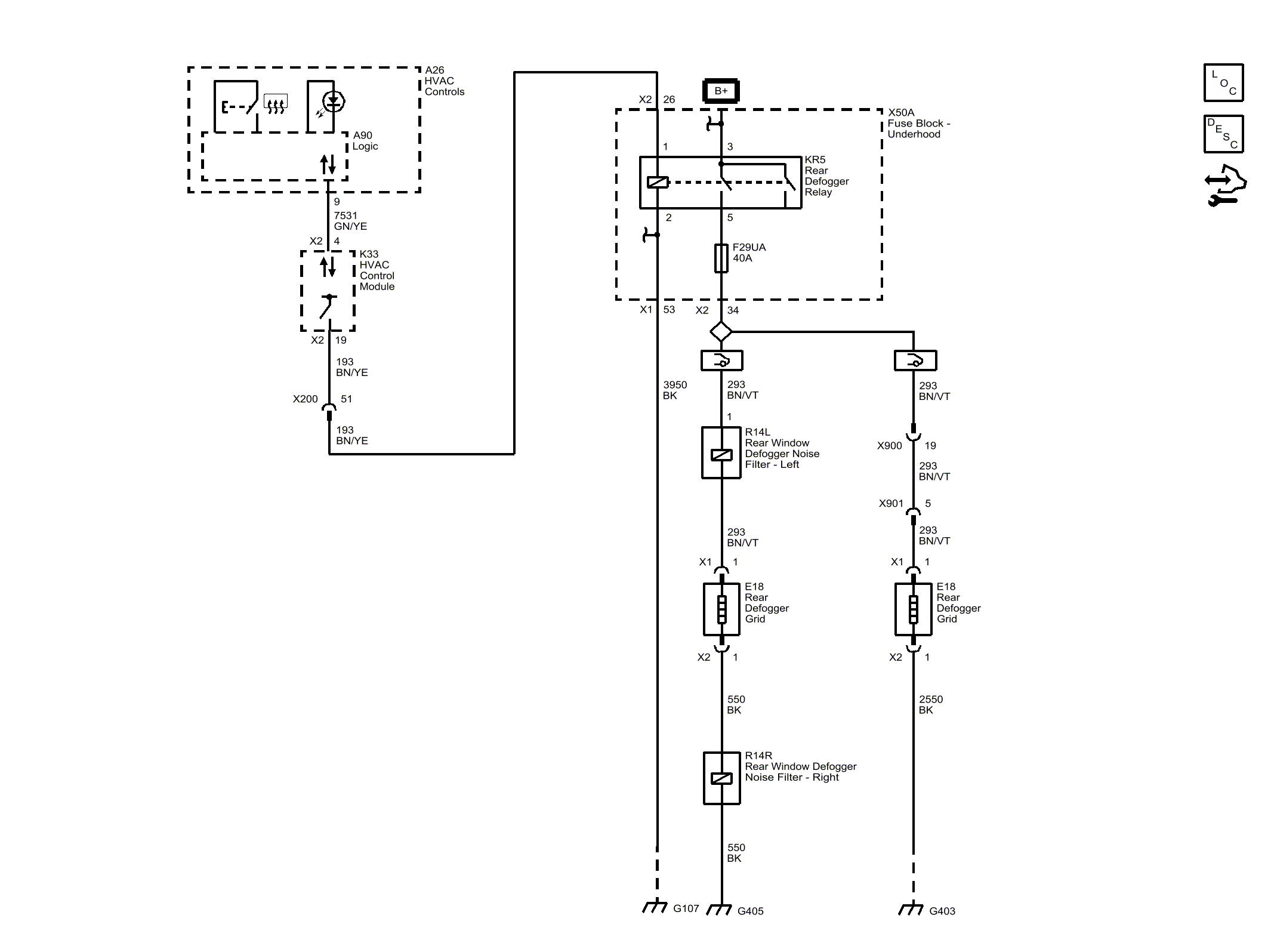

Home › Chevrolet › 2017 › Cruze LS, Automatic Trans › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Defogger Wiring Schematics › Rear Window Defogger
