Battery Negative Cable Disconnection and Connection: Overview

  1. The following graphics shows the different battery negative cable variants:

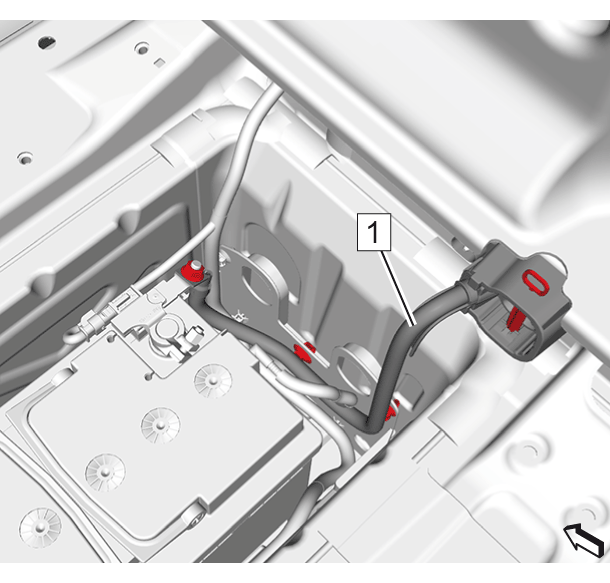

      Fig 1: Battery Negative Cable At Notchback Variant
      GM4421763Courtesy of GENERAL MOTORS COMPANY
    1. Battery negative cable (1) at the notchback variant.

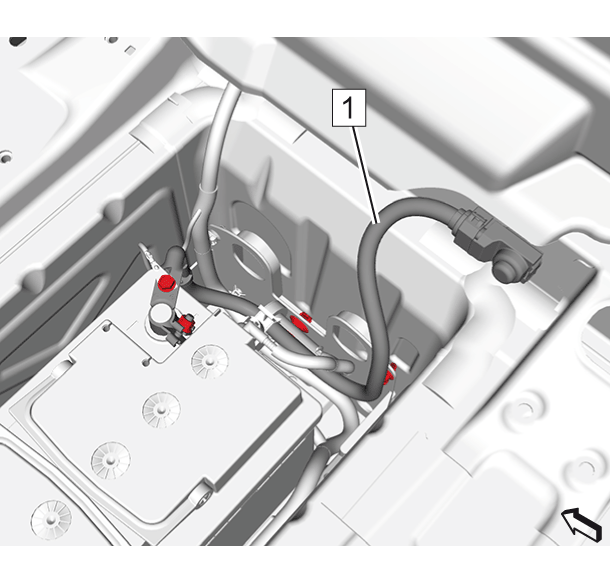

      2. Fig 2: Battery Negative Cable At Hatchback Variant
      GM4421761Courtesy of GENERAL MOTORS COMPANY
    2. Battery negative cable (1) at the hatchback variant.
