Removal Procedure

  1. Turn on the radio and record all of the customer radio station presets.
  2. Ensure that all lamps and accessories are turned off.
  3. Turn the ignition OFF and remove the ignition key.
  4. Open the rear compartment lid.
  5. Remove Rear Compartment Floor Panel Trim
  6. Remove Rear Compartment Floor Panel Trim Support
  7. Open the right rear door.
  8. Fold the rear seat back cushion forward to get a better access to the battery.

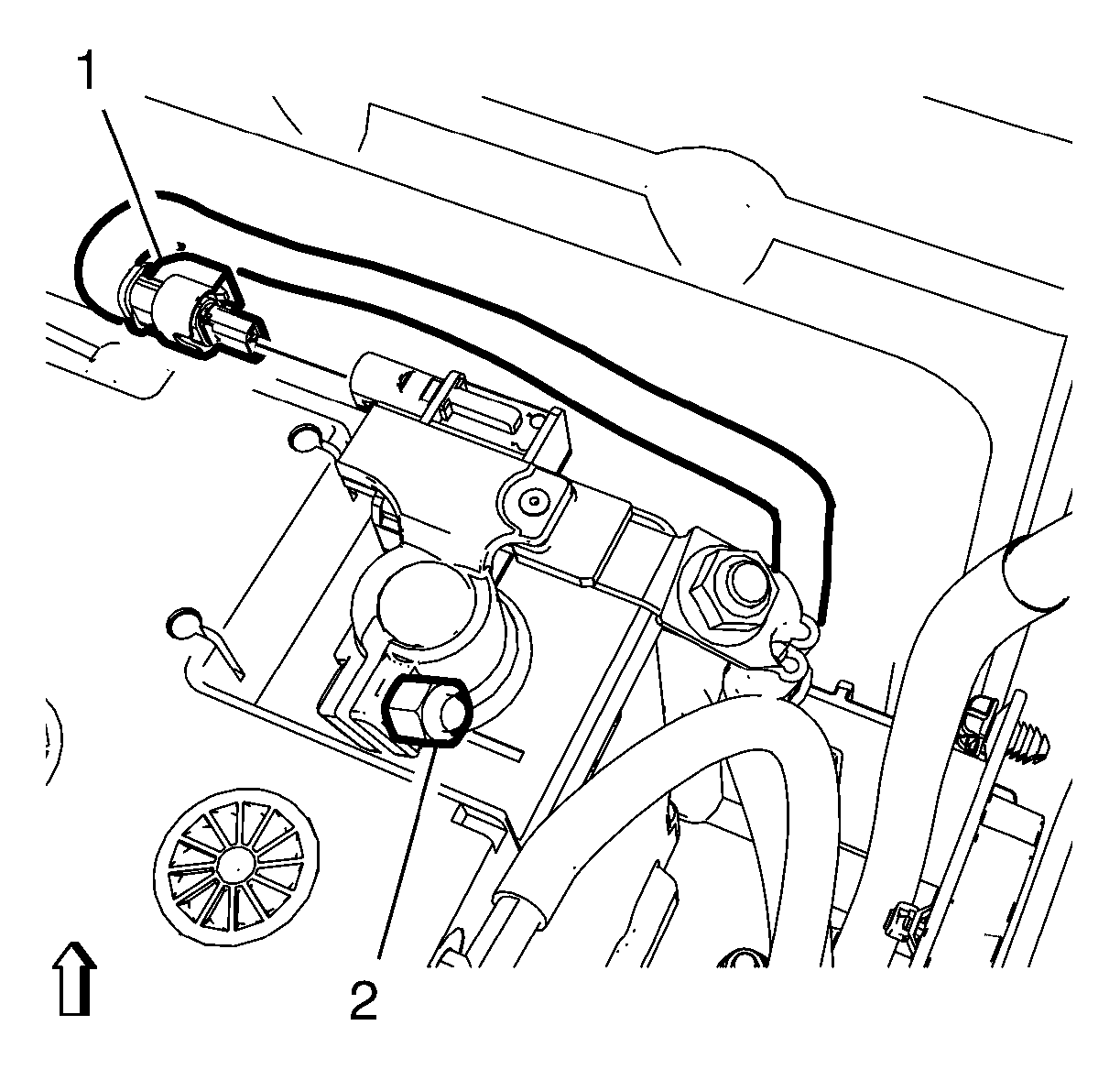

    9. Fig 1: Wiring Harness Plug And Battery Negative Pole Nut
    GM3682628Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Battery Disconnect Warning .

  9. Loosen the battery negative pole nut (2).
  10. Disconnect the wiring harness plug (1) from the battery sensor.

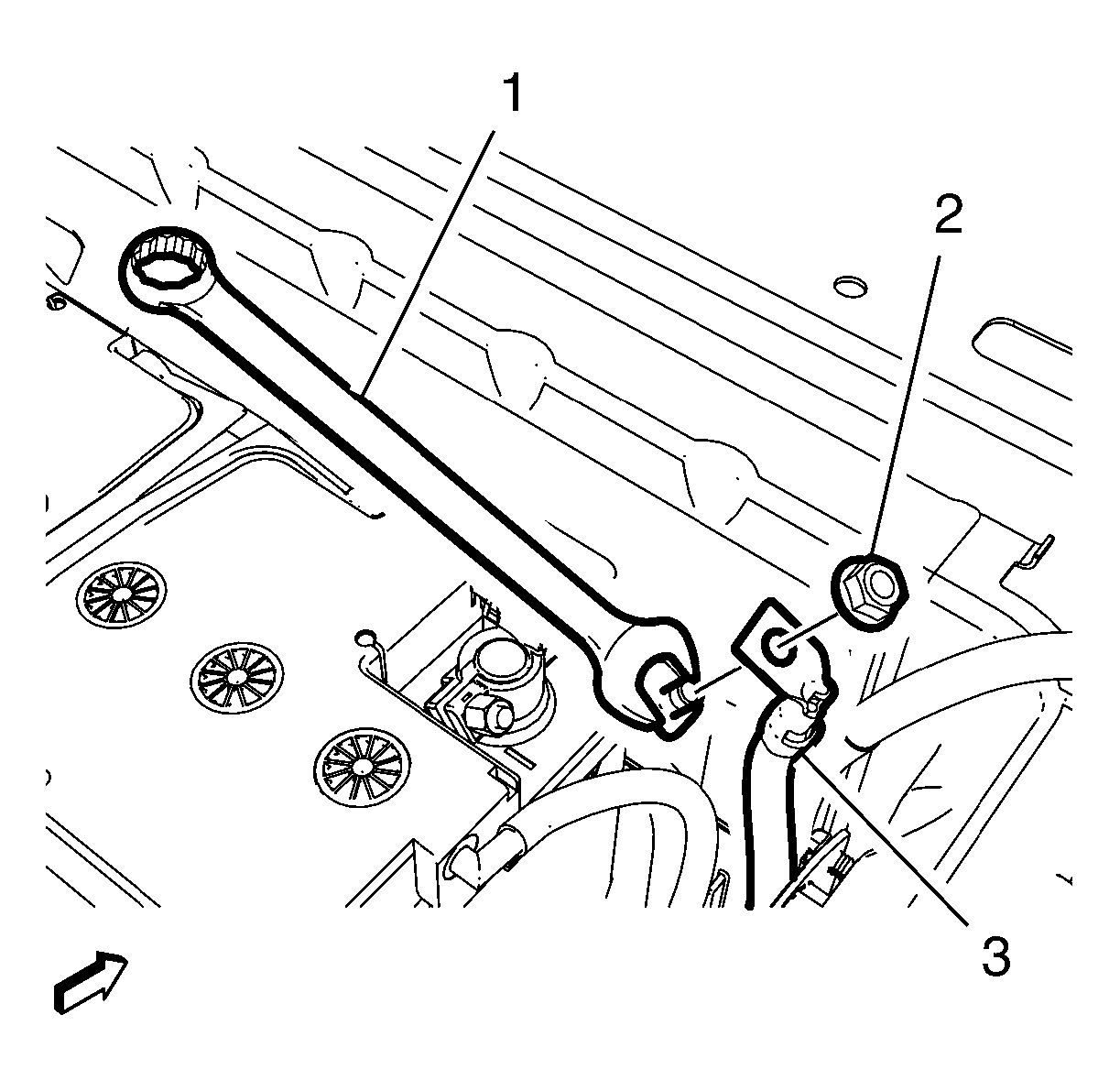

    11. Fig 2: Battery Negative Cable And Nut
    GM3682611Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a counterholder to prevent damage at the battery sensor.

  11. Install a open-end spanner (1) to counterhold the battery sensor as shown in the graphic.
  12. Remove the battery negative cable nut (2).
  13. Remove the battery negative cable.(3)

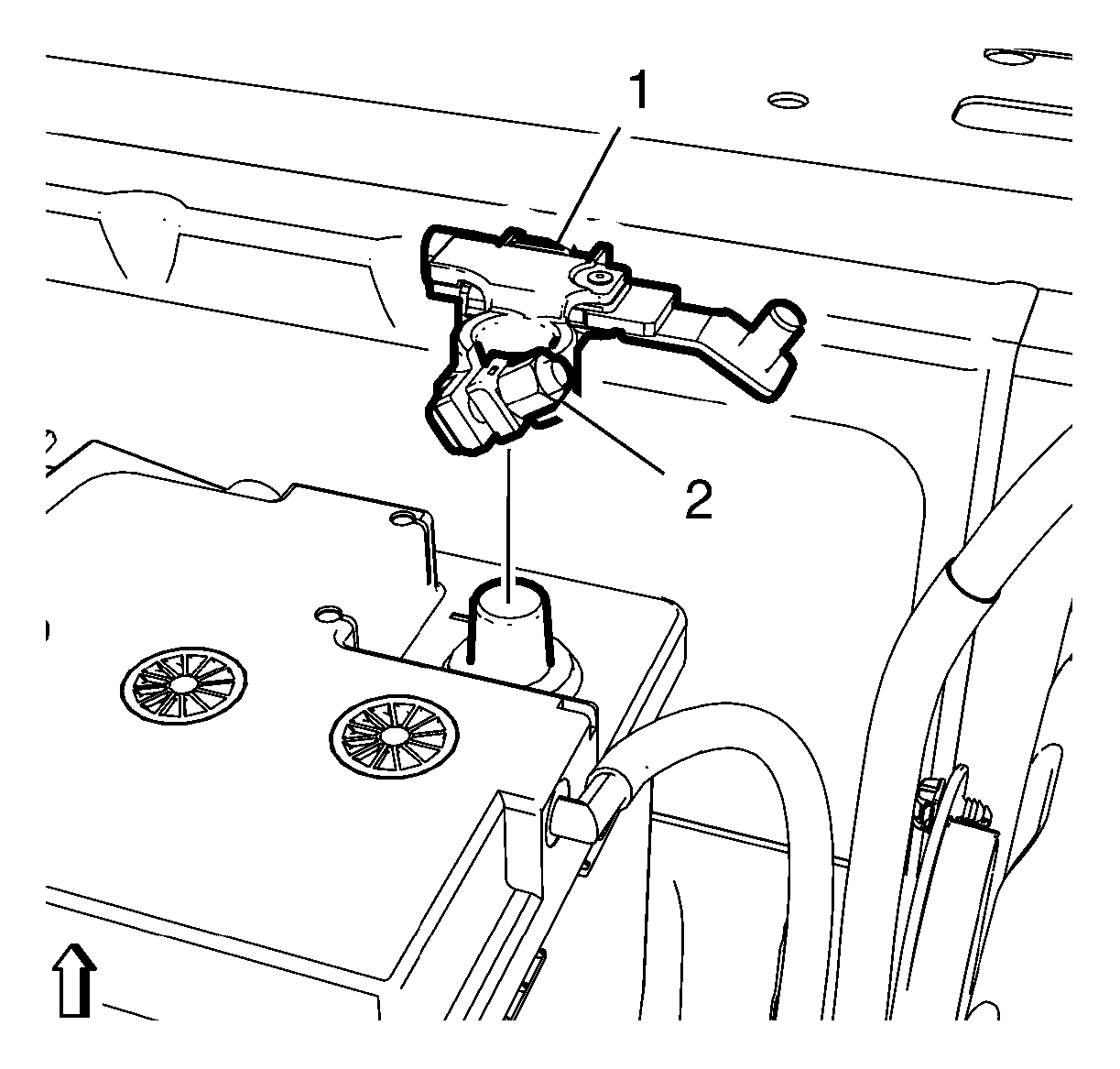

    14. Fig 3: Battery Sensor
    GM3682629Courtesy of GENERAL MOTORS COMPANY
  14. Remove the battery sensor (1).
