Installation Procedure

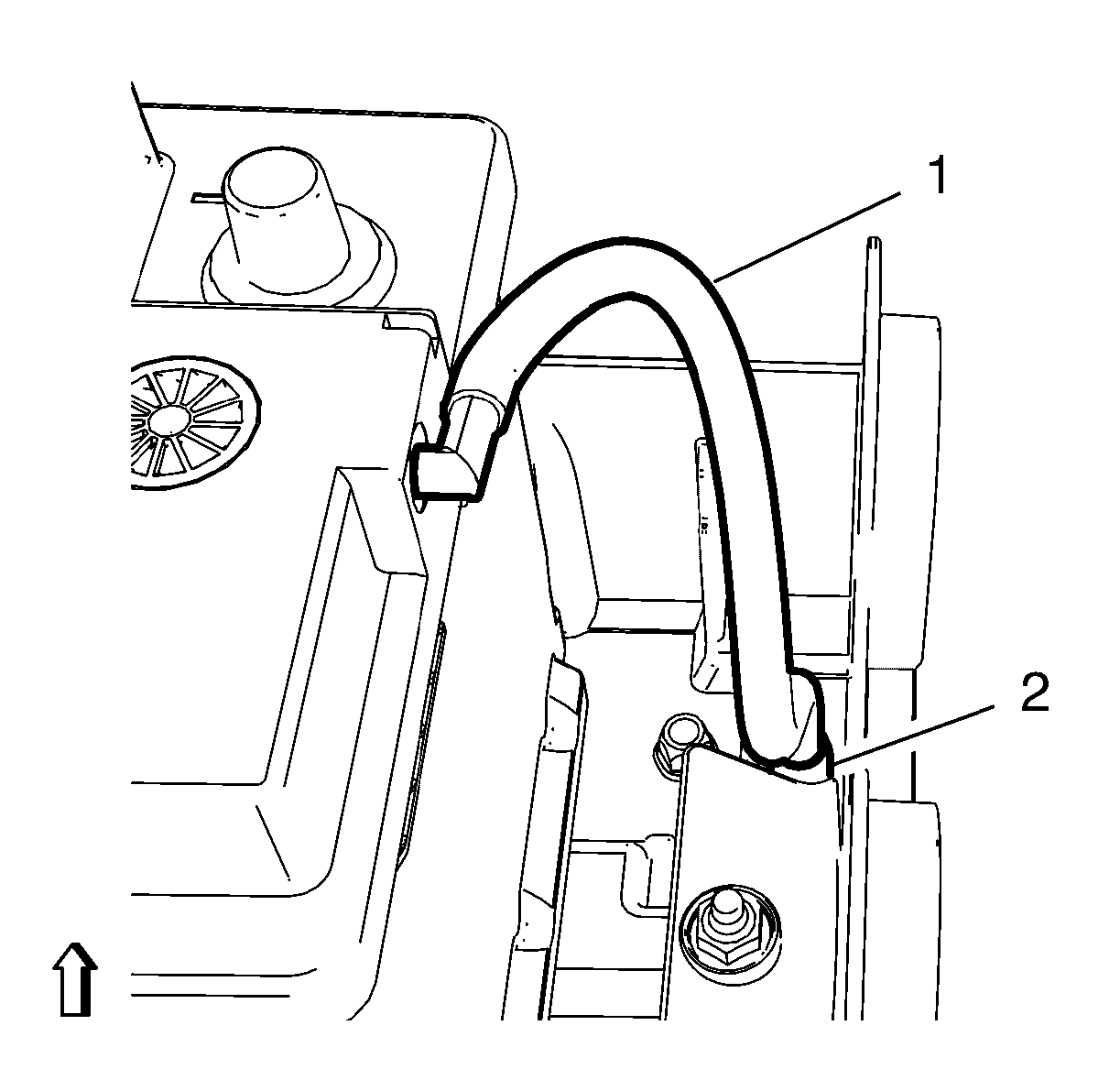

Fig 1: Battery Vent Tube

GM3684429

Courtesy of GENERAL MOTORS COMPANY

Install the battery vent tube along with the grommet (2) to the battery tray.
Install the battery tray along with the vent tube. Refer to:Battery Tray Replacement .
Install the battery vent tube (1) to the battery.
Install Battery Negative Cable Disconnection and Connection
