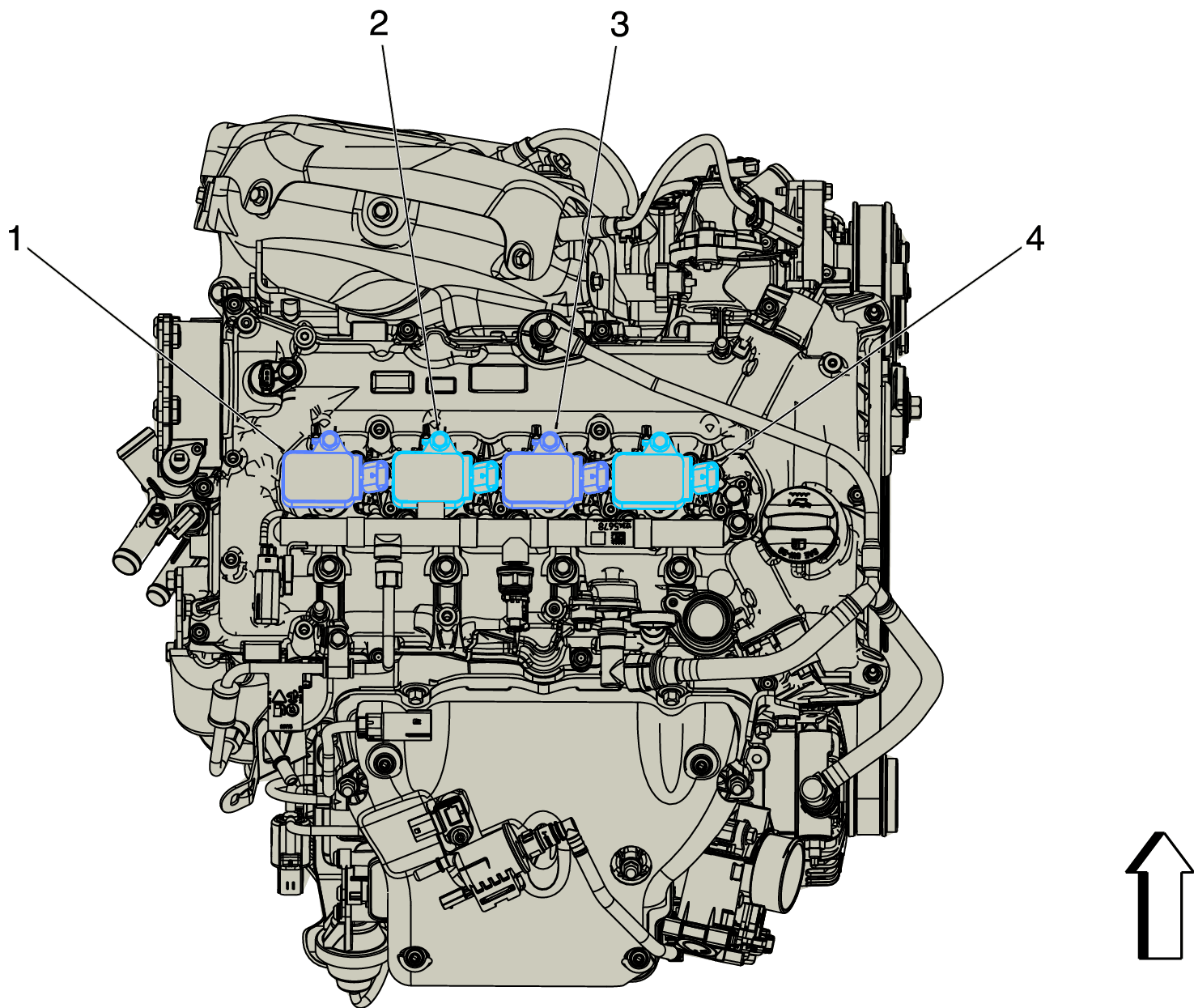

Top View Ignition Coils (LE2/LEX)

Items
1: T8C Ignition Coil 3 T8C Ignition Coil 3
2: T8B Ignition Coil 2 T8B Ignition Coil 2
3: T8D Ignition Coil 4 T8D Ignition Coil 4
4: T8A Ignition Coil 1 T8A Ignition Coil 1

Fig 1: Top View Ignition Coils (LE2/LEX)

Courtesy of GENERAL MOTORS COMPANY
