Rear Intake Air Duct Replacement

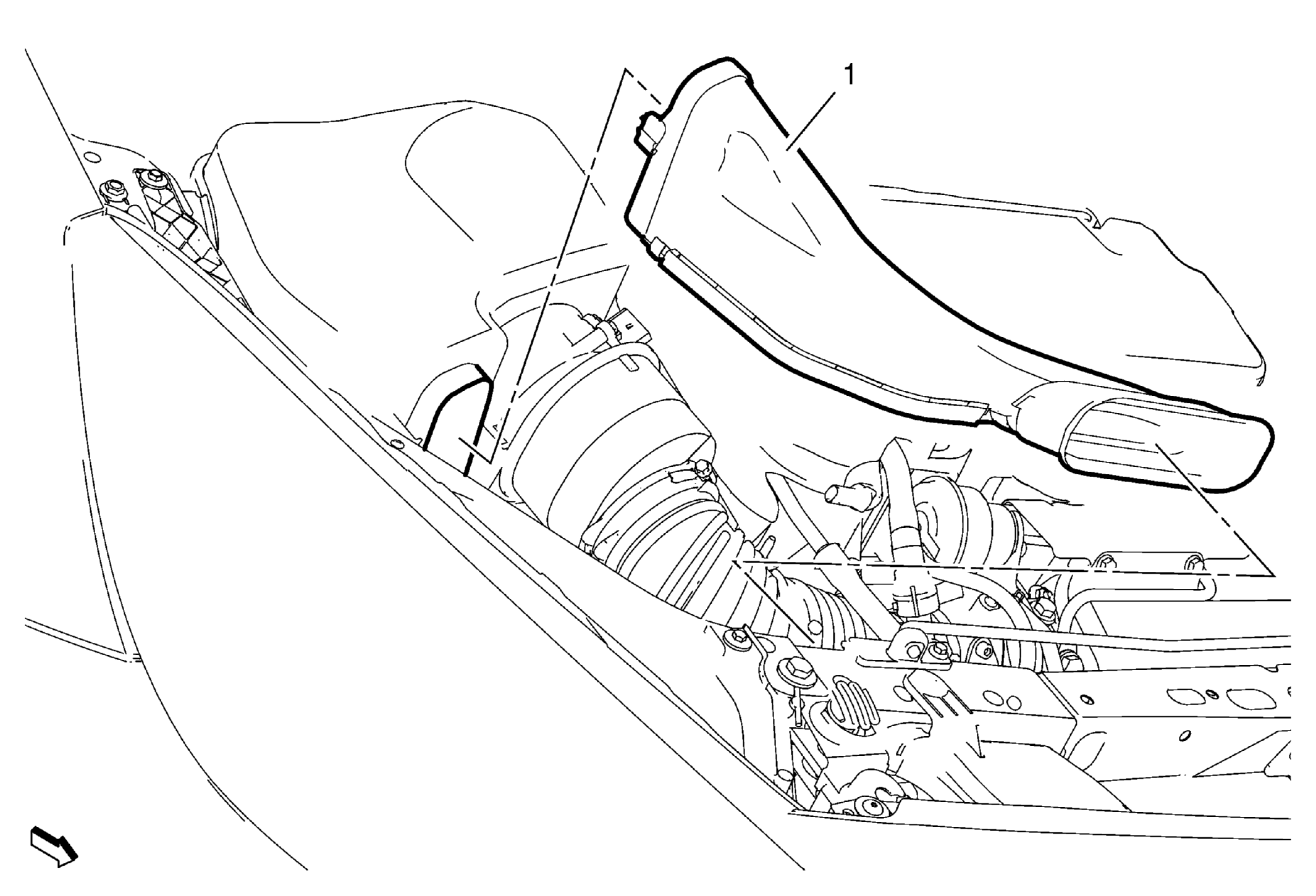

Fig 1: Rear Intake Air Duct

GM3686930

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Intake Air Duct Procedure Unclip Rear Intake Air Duct@Air Cleaner Assembly
