Spark Plug Replacement

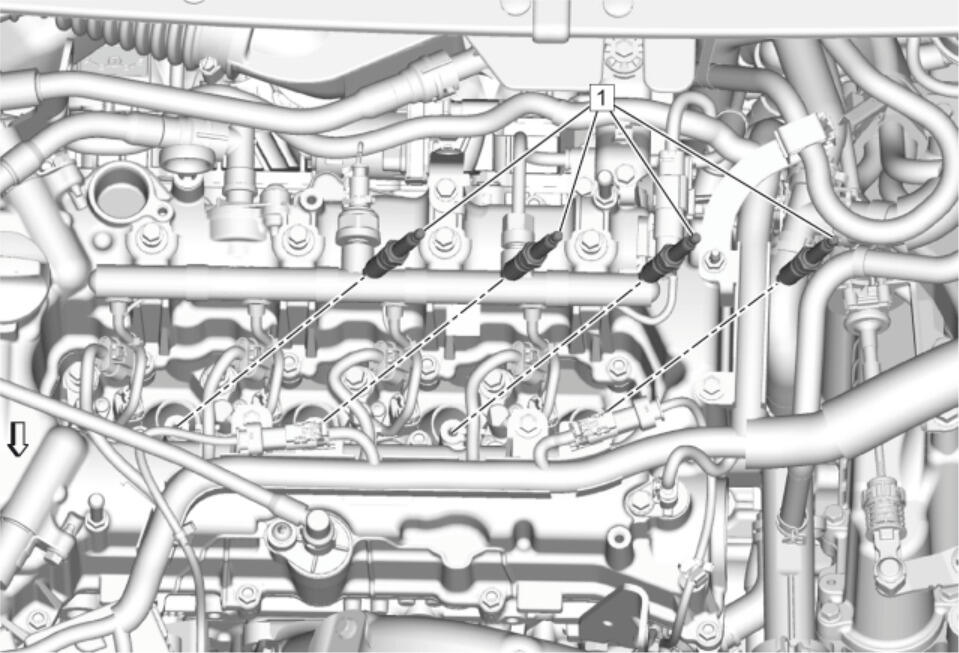

Fig 1: Spark Plugs

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Ignition Coil Replacement
1	Spark Plug (Qty: 4) CAUTION: Refer to:Component Fastener Tightening Caution Tighten 17 N.m (13 lb ft)
