Serial Data Gateway Module Replacement

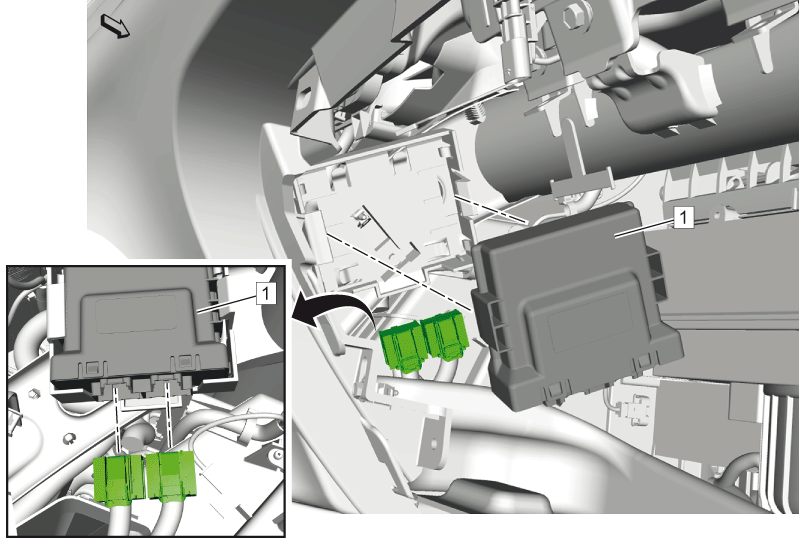

Fig 1: Serial Data Gateway Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Compartment. Refer to Instrument Panel Compartment Replacement
1	Serial Data Gateway Module Procedure Disconnect the electrical connector. Unlock the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Compartment. Refer to Instrument Panel Compartment Replacement

Serial Data Gateway Module

Procedure
