Linear Interconnect Network (LIN) Serial Data

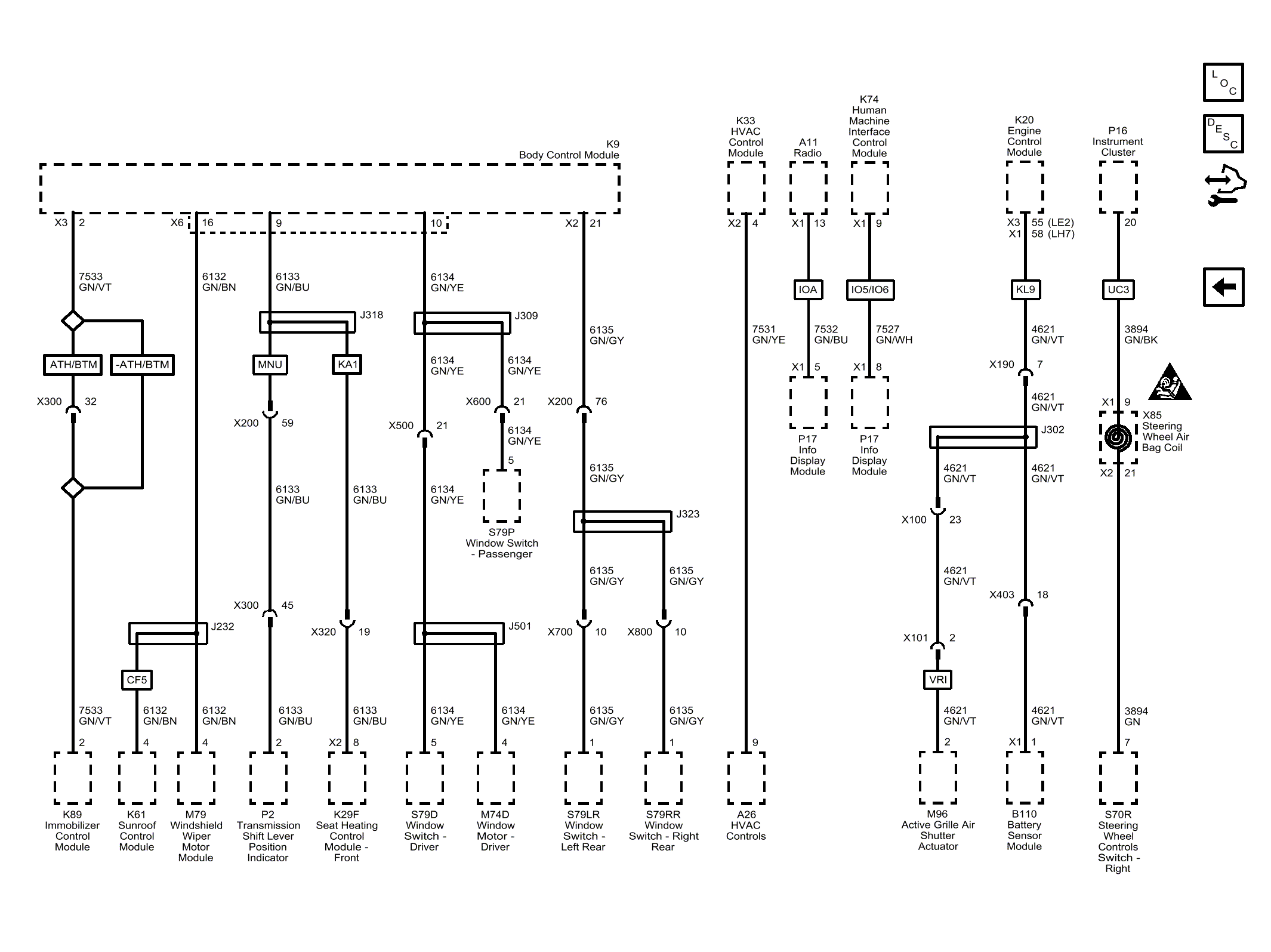

Fig 1: Linear Interconnect Network (LIN) Serial Data
GM4334999Courtesy of GENERAL MOTORS COMPANY
