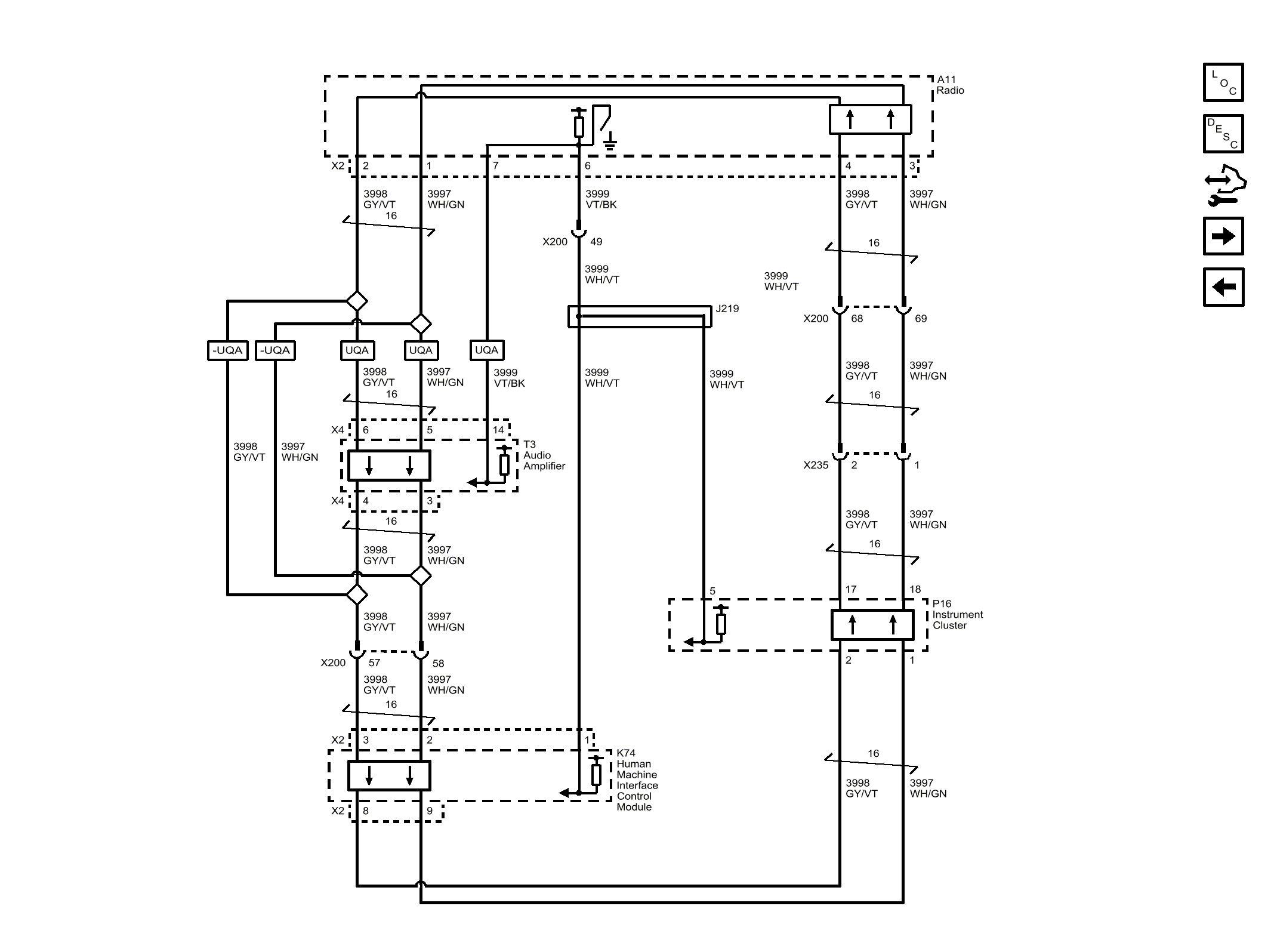

Home › Chevrolet › 2017 › Cruze LS, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › MOST Bus
