Powertrain Expansion Bus (LE2/LEX)

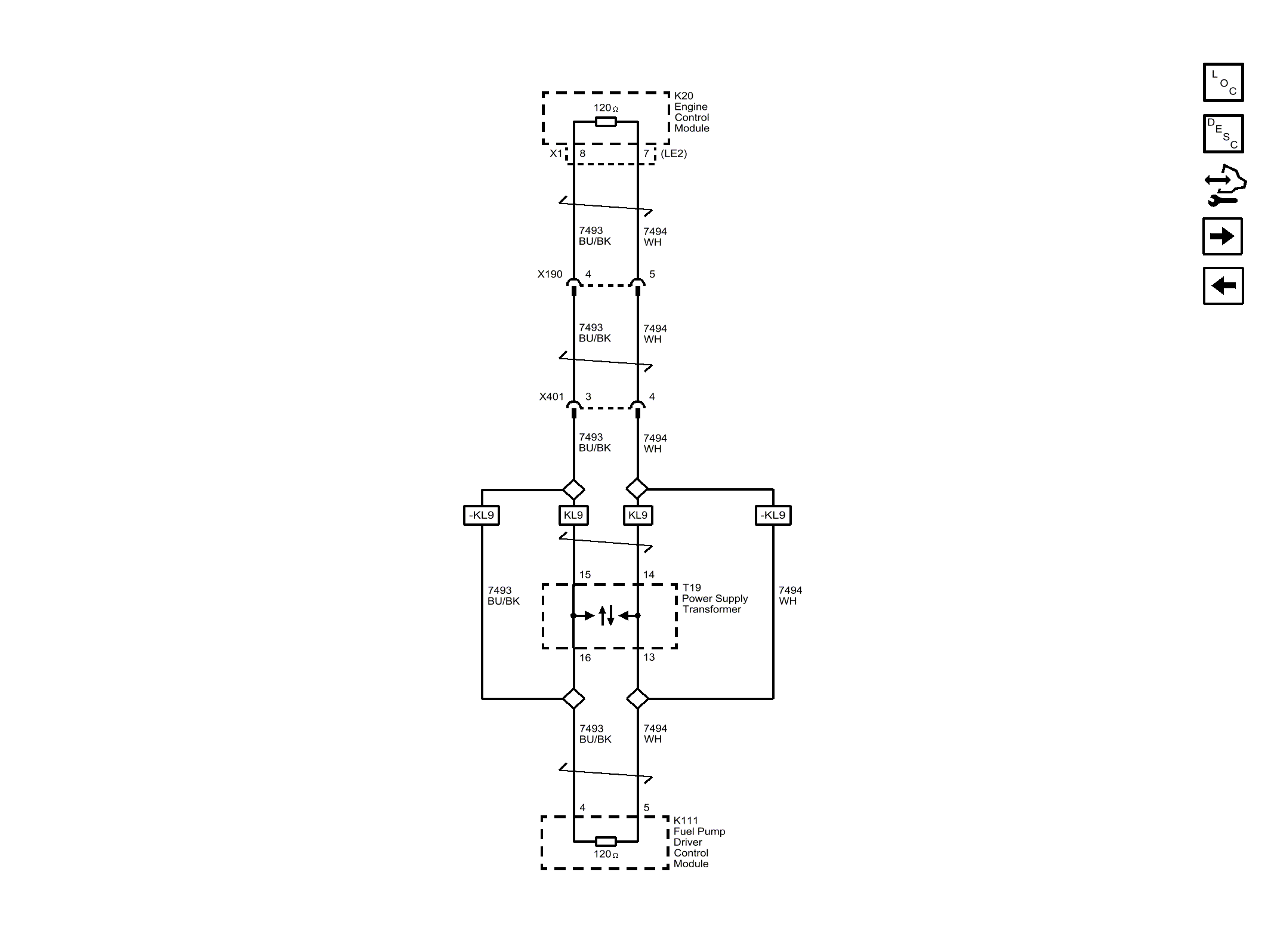

Fig 1: Powertrain Expansion Bus (LE2/LEX)
GM4335000Courtesy of GENERAL MOTORS COMPANY
