Powertrain Expansion Bus (LH7)

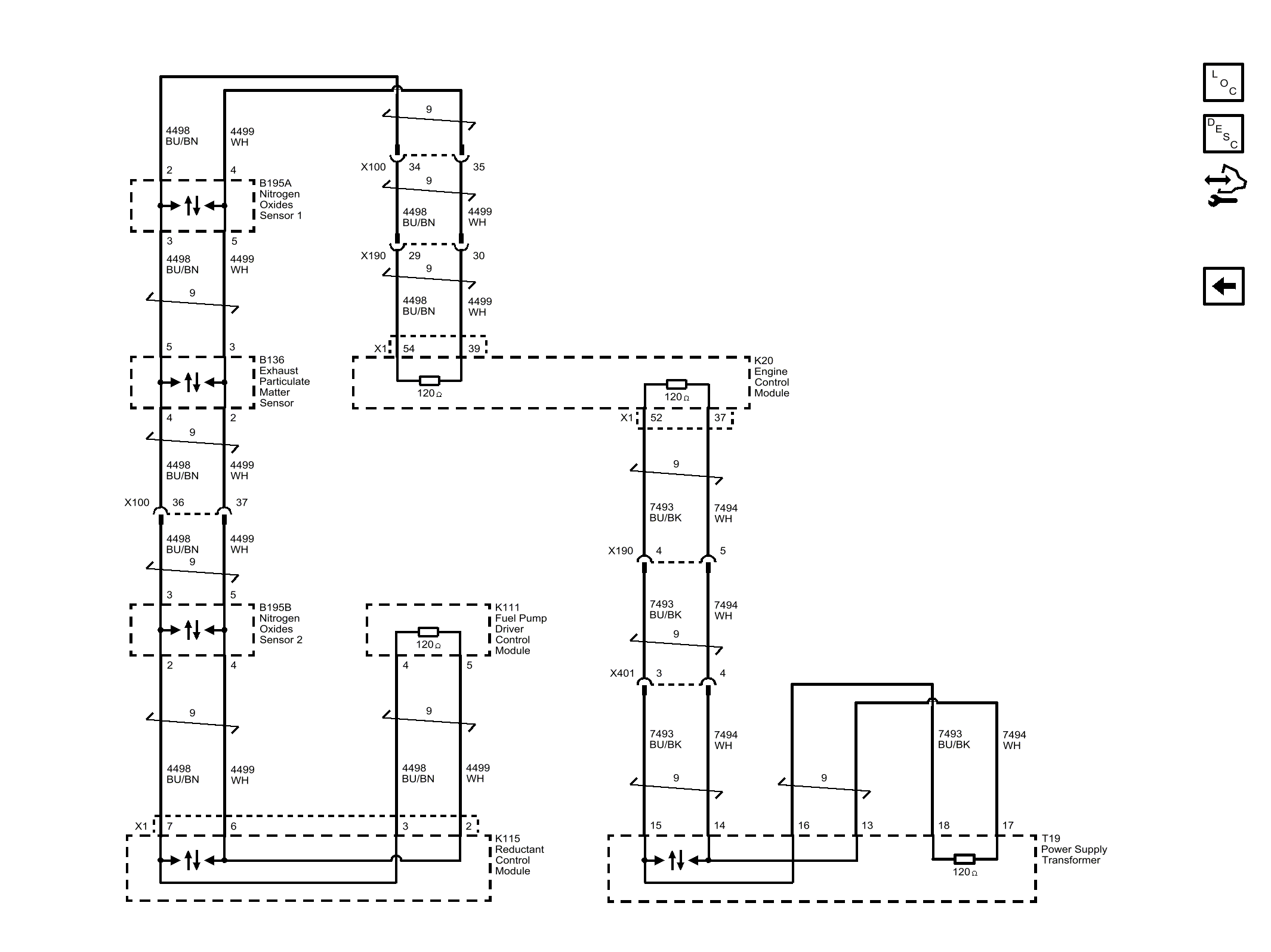

Fig 1: Powertrain Expansion Bus (LH7)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
