Steering Gear Heat Shield Replacement

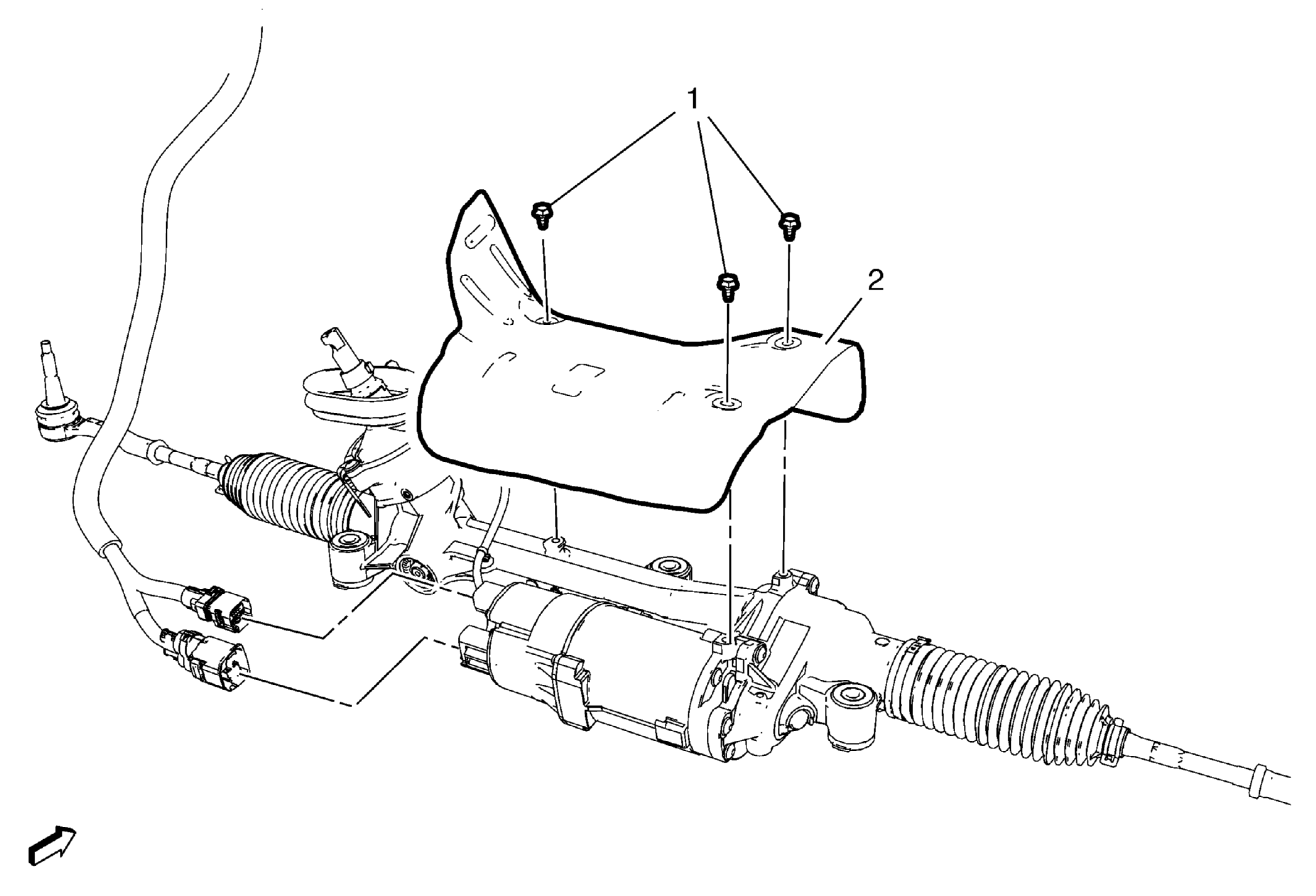

Fig 1: Steering Gear Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Exhaust Front Pipe Replacement (1.4L LE2)Exhaust Front Pipe Replacement (1.6L Diesel LH7)
1	Steering Gear Heat Shield Bolt (Qty: 3) CAUTION: Fastener Caution Tighten  9 N.m (80 lb in)
2	Steering Gear Heat Shield
