Steering Linkage Outer Tie Rod Replacement

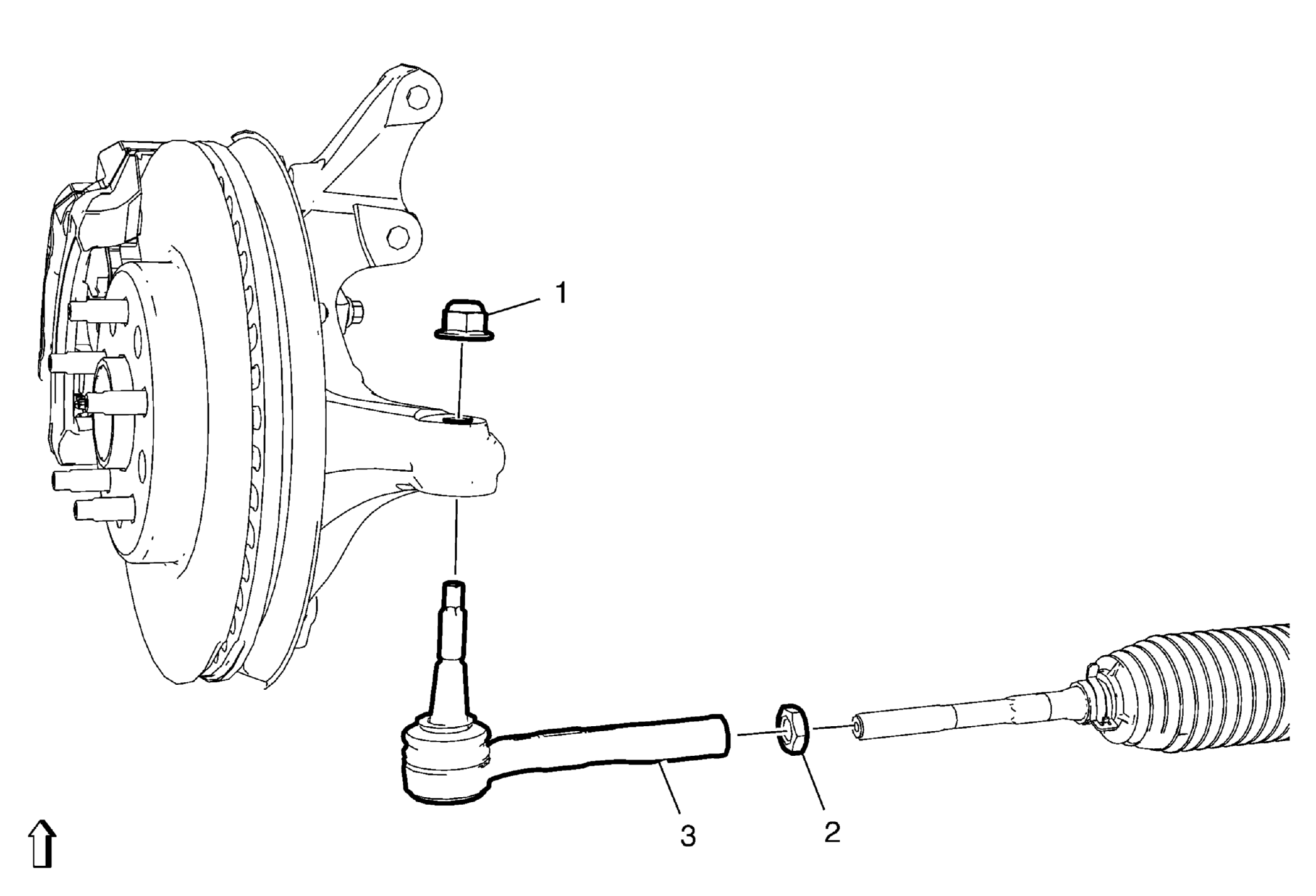

Fig 1: Steering Linkage Outer Tie Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Tire and Wheel Removal and Installation
1	Steering Linkage Tie Rod Nut WARNING: Torque-to-Yield Fastener Warning CAUTION: Fastener Caution Procedure Install a NEW nut. - Do NOT reuse the old nut. Tighten First Pass: 35 N.m (26 lb ft) Final Pass:30 - 45 degrees Special Tools EN-45059 Angle Meter Equivalent regional tools:Special Tools
2	Steering Linkage Inner Tie Rod Nut Tighten 60 N.m (44 lb ft)
3	Steering Linkage Outer Tie Rod Procedure Disconnect the outer tie rod from the steering knuckle. Inspect the steering linkage inner tie rod for bent or damaged threads. Clean the tapered surface of the steering knuckle. Adjust Wheel Alignment Measurement Adjust Steering Wheel Angle Sensor Centering
