Installation Procedure

    Fig 1: Intermediate Steering Shaft
    GM3665672Courtesy of GENERAL MOTORS COMPANY
  1. Install Intermediate Steering Shaft (1)
    2. Fig 2: Steering Column And Intermediate Steering Shaft
    GM3665671Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The recess of the fine toothing in the intermediate steering shaft (2) have to align precisely with the recess of the fine toothing on the steering column (1). The bore in the intermediate steering shaft has to align with the groove on the steering column (3).

  2. Connect the intermediate steering shaft to the steering column.
    3. Fig 3: Intermediate Steering Shaft, Steering Gear And Steering Gear Pinion
    GM3665670Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The recess of the intermediate steering shaft (2) has to align precisely with the recess of the steering gear (1). The bore in the intermediate steering shaft has to align with the groove on the steering gear pinion (3)

  3. Connect the steering intermediate shaft to the steering gear.

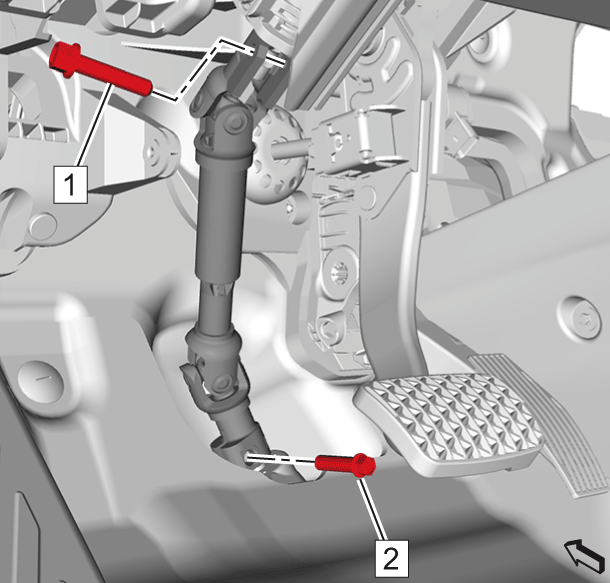

    4. Fig 4: Intermediate Steering Shaft Upper And Lower Bolt
    GM4421812Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install Intermediate Steering Shaft Upper Bolt (1) and tighten
    1. First pass: 25 N.m (18 lb ft)
    2. Final pass: 180 to 195 degrees, using the EN-45059  meter.
  5. Install Intermediate Steering Shaft Lower Bolt (2) and tighten 34 N.m (25 lb ft)
