Installation Procedure

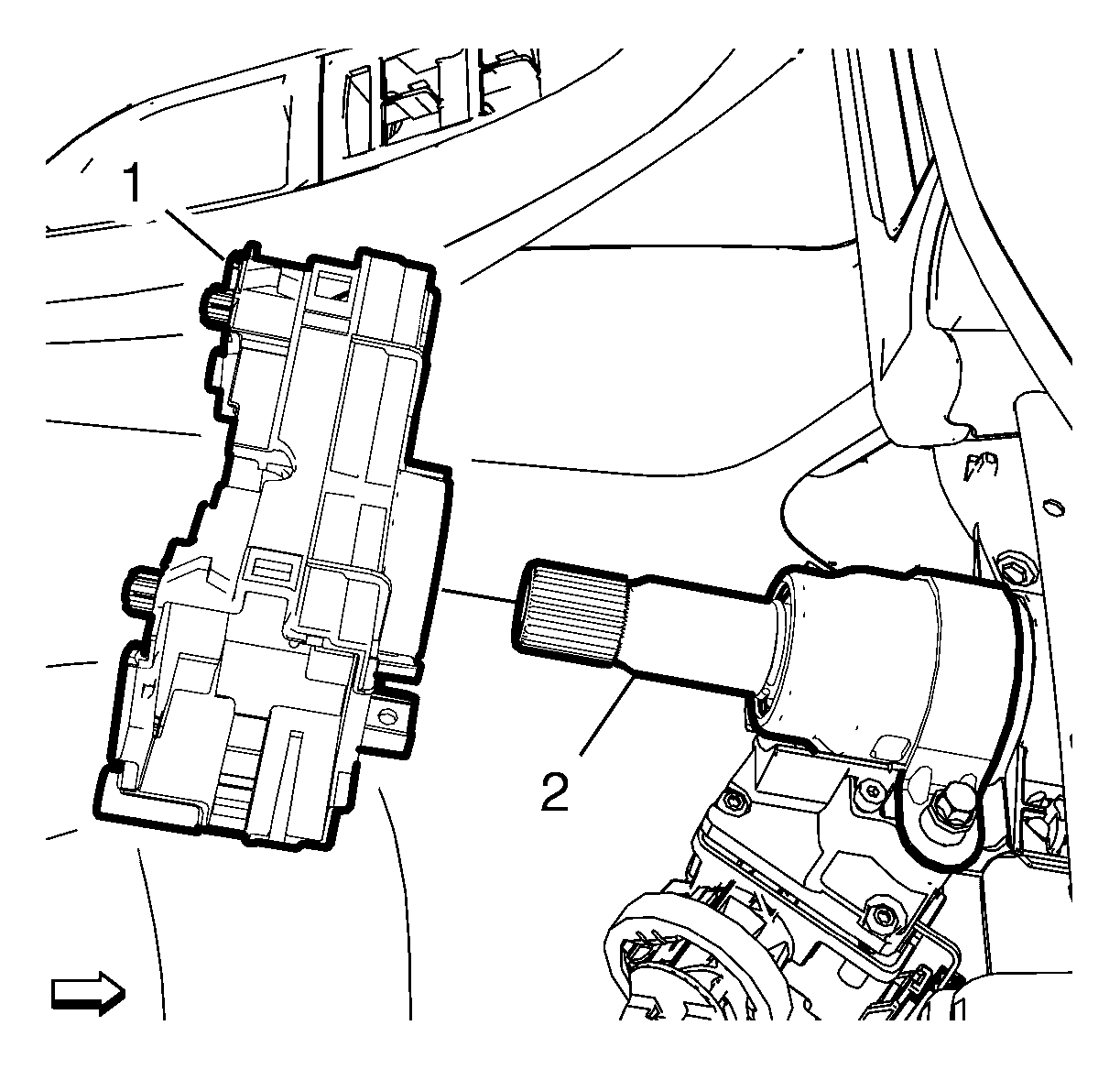

    Fig 1: Turn Signal Switch Bracket And Steering Column
    GM3701748Courtesy of GENERAL MOTORS COMPANY
  1. Install Turn Signal Switch Bracket (1)@Steering Column (2) - Install until the tabs snap in

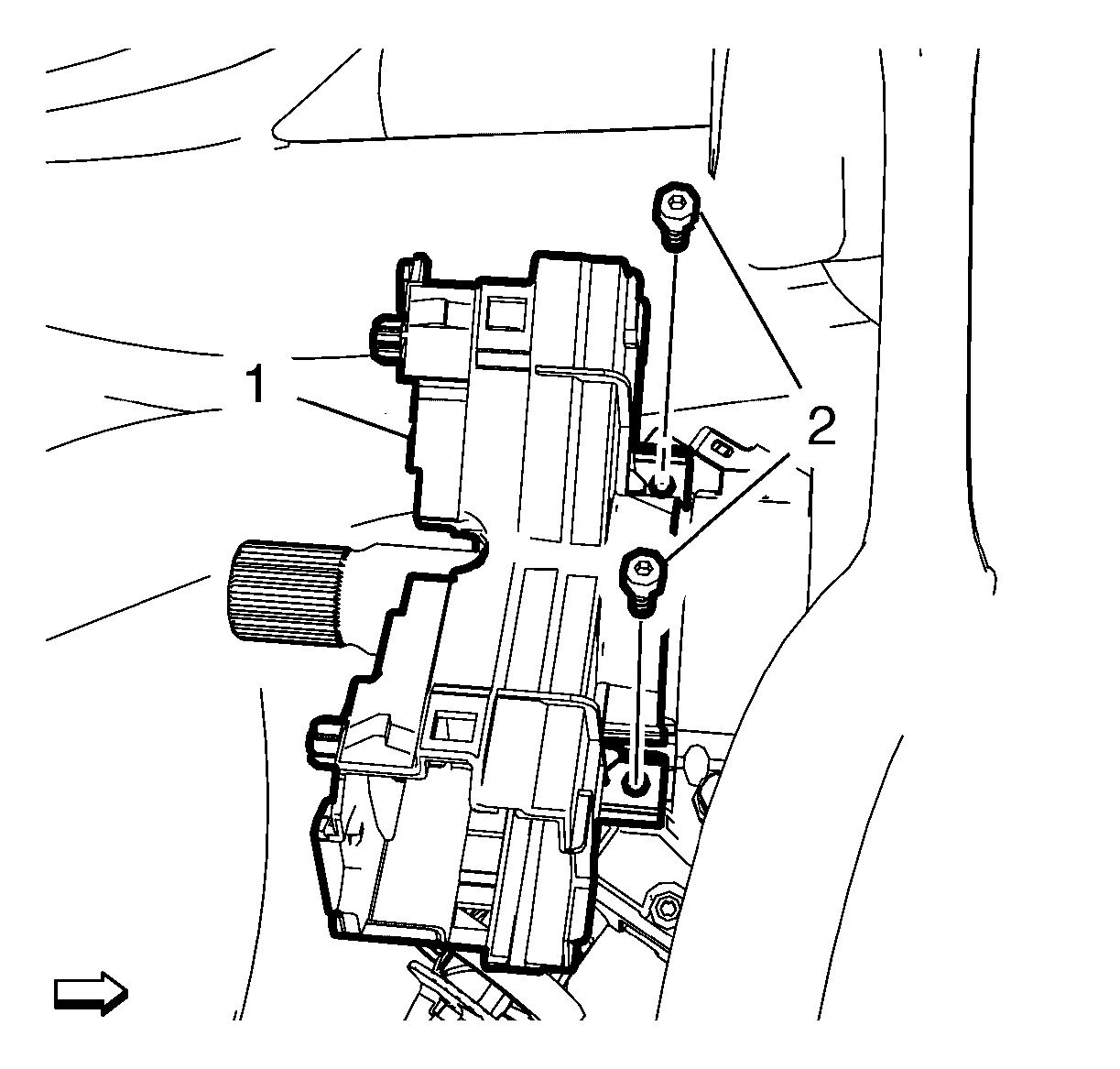

    2. Fig 2: Turn Signal Switch Bracket Bolts
    GM3701747Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  2. Install Bolt (2) @Turn Signal Switch Bracket (1) and tighten 2.35 N.m (21 lb in)

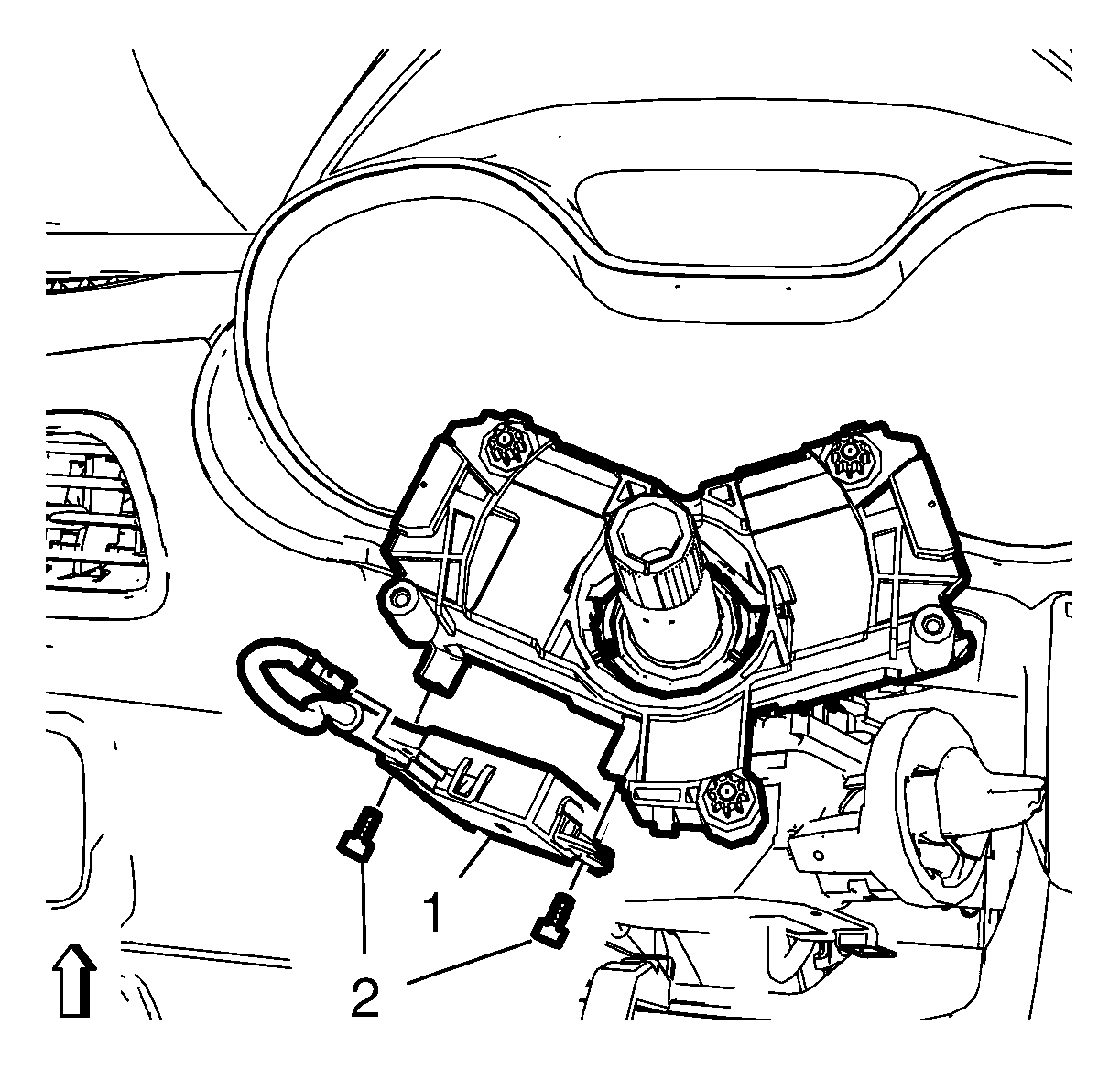

    3. Fig 3: Theft Deterrent Module Bolts
    GM3701746Courtesy of GENERAL MOTORS COMPANY
  3. Install Theft Deterrent Module (1)
  4. Install Bolt (2) and tighten 0.8 N.m (7 lb in)
  5. Install Windshield Wiper and Washer Switch Replacement
  6. Install Turn Signal Switch Replacement
  7. Install Steering Wheel Airbag Coil Replacement
  8. Install Steering Column Lower Trim Cover Replacement
  9. Install Steering Column Upper Trim Cover Replacement
  10. Install Steering Wheel Replacement
