Front Compartment Splash Shield Replacement

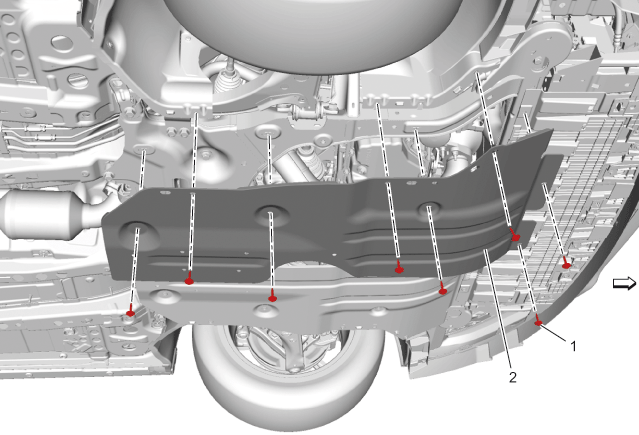

Fig 1: Front Compartment Splash Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Compartment Splash Shield Bolt (Qty: 8) CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Compartment Splash Shield
