Installation Procedure

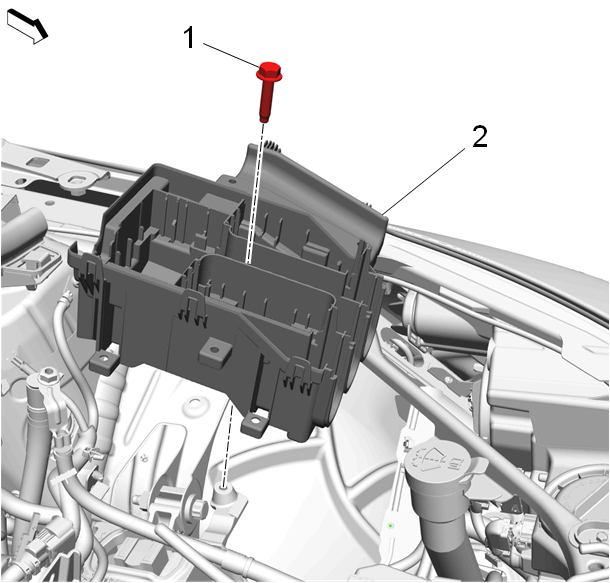

    Fig 1: Front Compartment Fuse Block Housing And Bolt
    GM4675899Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  1. Install Front Compartment Fuse Block Housing (2)
  2. Install and tighten Front Compartment Fuse Block Housing Bolt (1) to 22 N.m (16 lb ft)

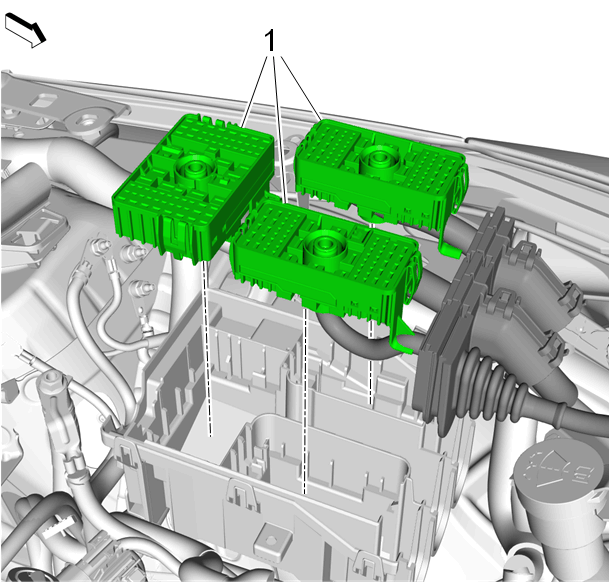

    3. Fig 2: Front Compartment Fuse Block Housing Electrical Connectors
    GM4675897Courtesy of GENERAL MOTORS COMPANY
  3. Install the electrical connectors to the front compartment fuse block housing. (1)
  4. Install Front Compartment Fuse Block. Refer to Front Compartment Fuse Block Replacement
  5. Connect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
