Cruze Premier, 4D Hatchback
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Power, Ground, and Data Communications
Power, Ground, and Data Communications

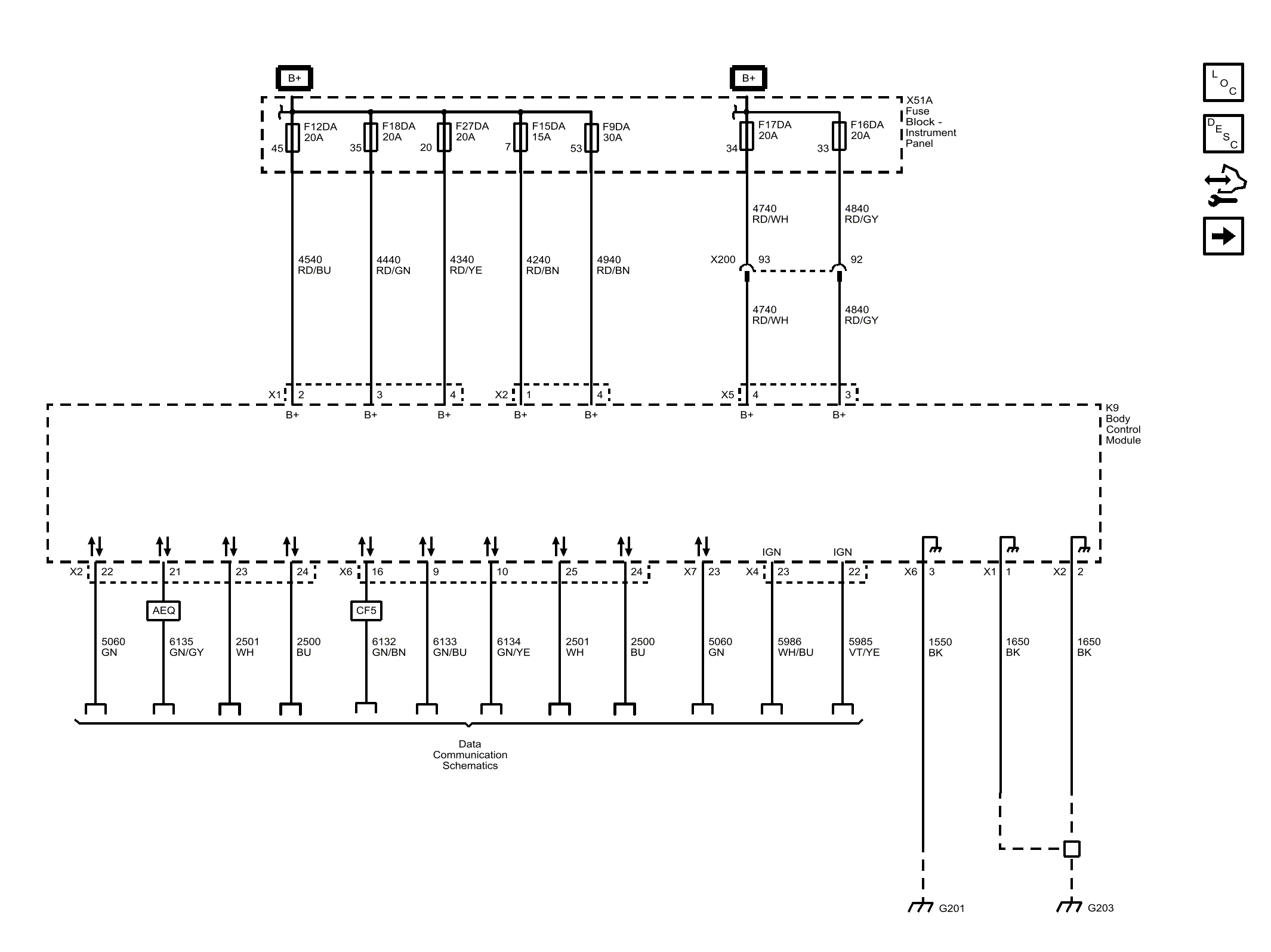

Fig 1: Power, Ground, and Data Communications
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
