Camshaft Position Sensor Replacement

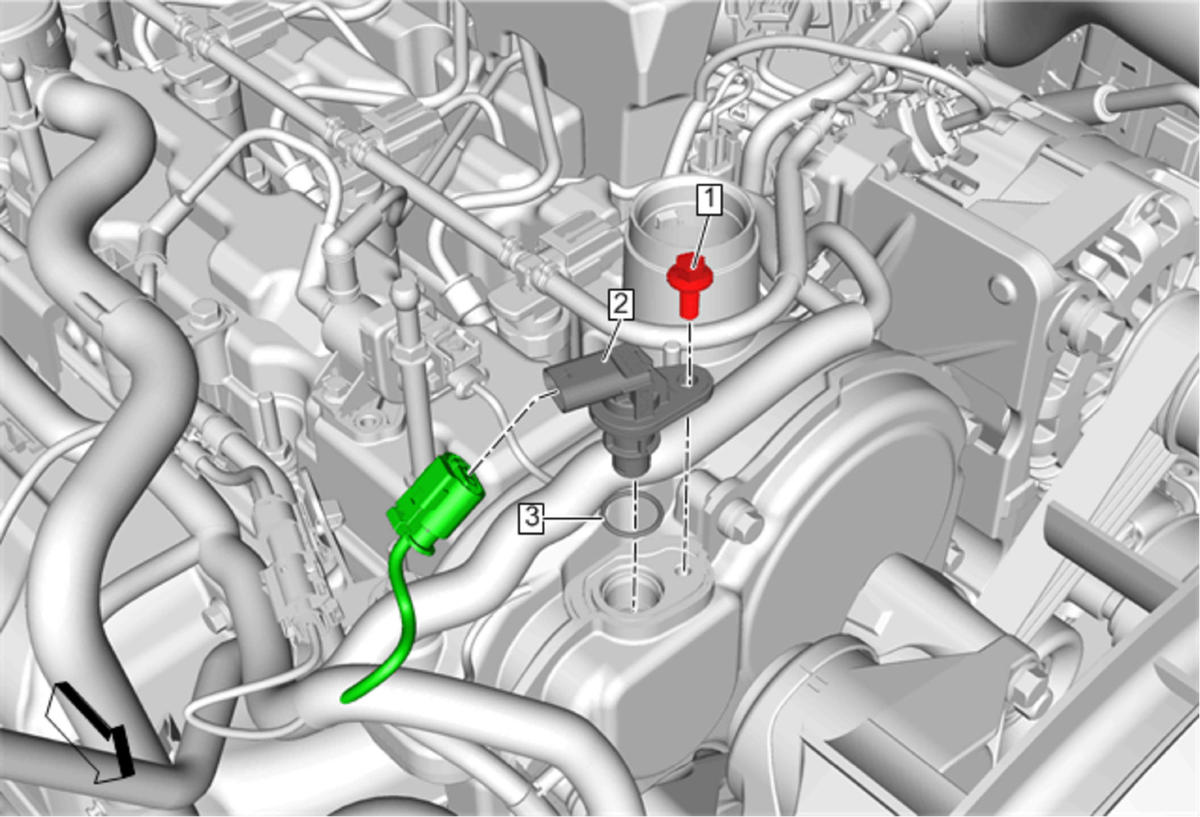

| Callout | Component Name |
|---|---|
| Preliminary Procedure Refer to Air Cleaner Assembly Replacement |
|
| 1 | Camshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . tighten 11 N.m. (97 lb in) |
| 2 | Camshaft Position Sensor Procedure Disconnect the electrical connector from the camshaft position sensor. |
| 3 | Camshaft Position Sensor Seal Ring
NOTE:
If reinstalling the sensor, inspect the seal and replace as needed. Always install the NEW seal supplied with the sensor. |
