Installation Procedure

  1. Install Fuel Feed Front Pipe @ Retainer [3x]

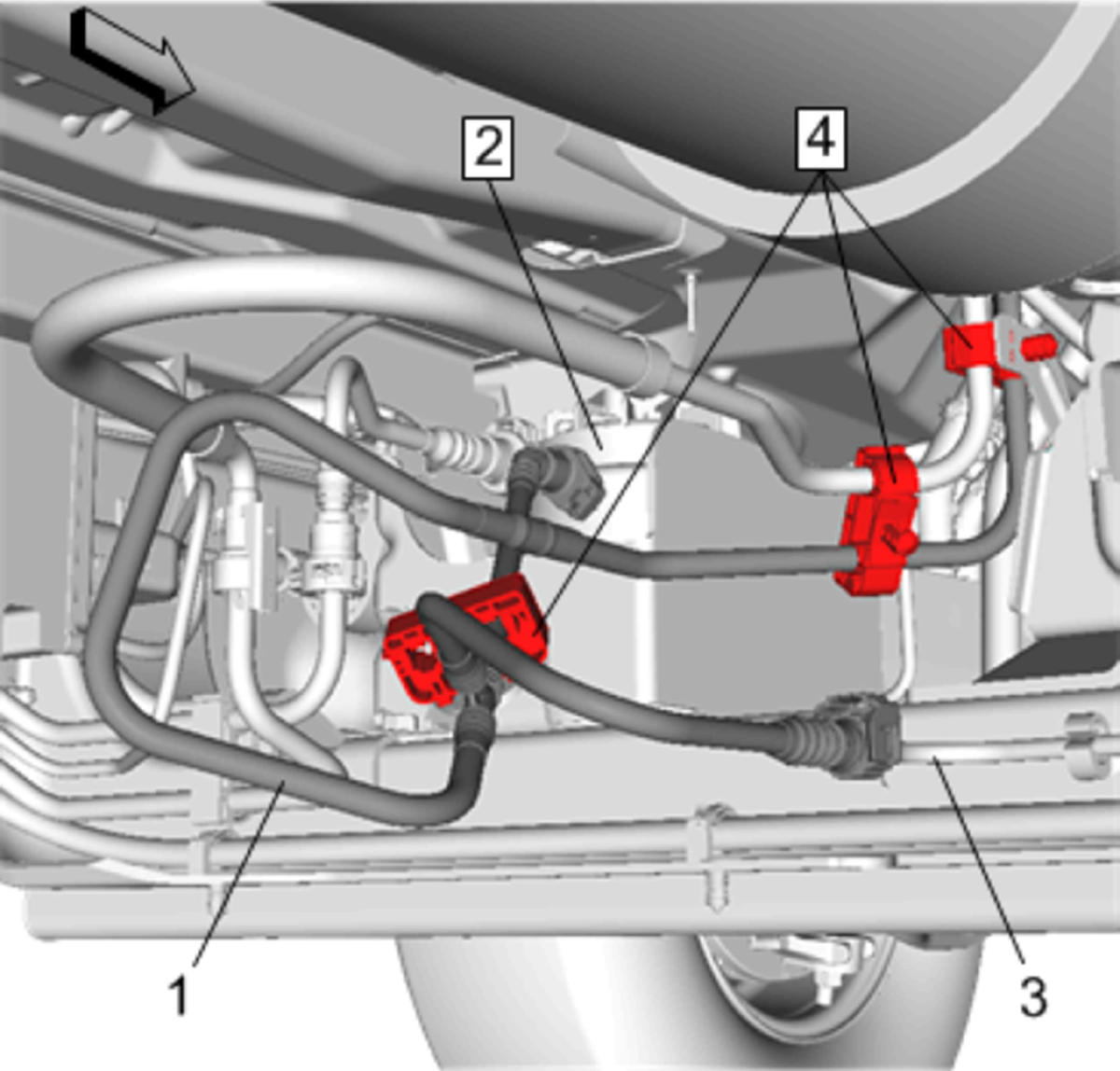

    GM4621698Courtesy of
  2. Connect Fuel Feed Front Pipe @ Fuel Feed Hydrocarbon Injection Front Pipe Refer to Plastic Collar Quick Connect Fitting Service
  3. Connect Fuel Feed Front Pipe @ Fuel Filter Assembly Refer to Plastic Collar Quick Connect Fitting Service
  4. Install Fuel Feed Front Pipe @ Retainer

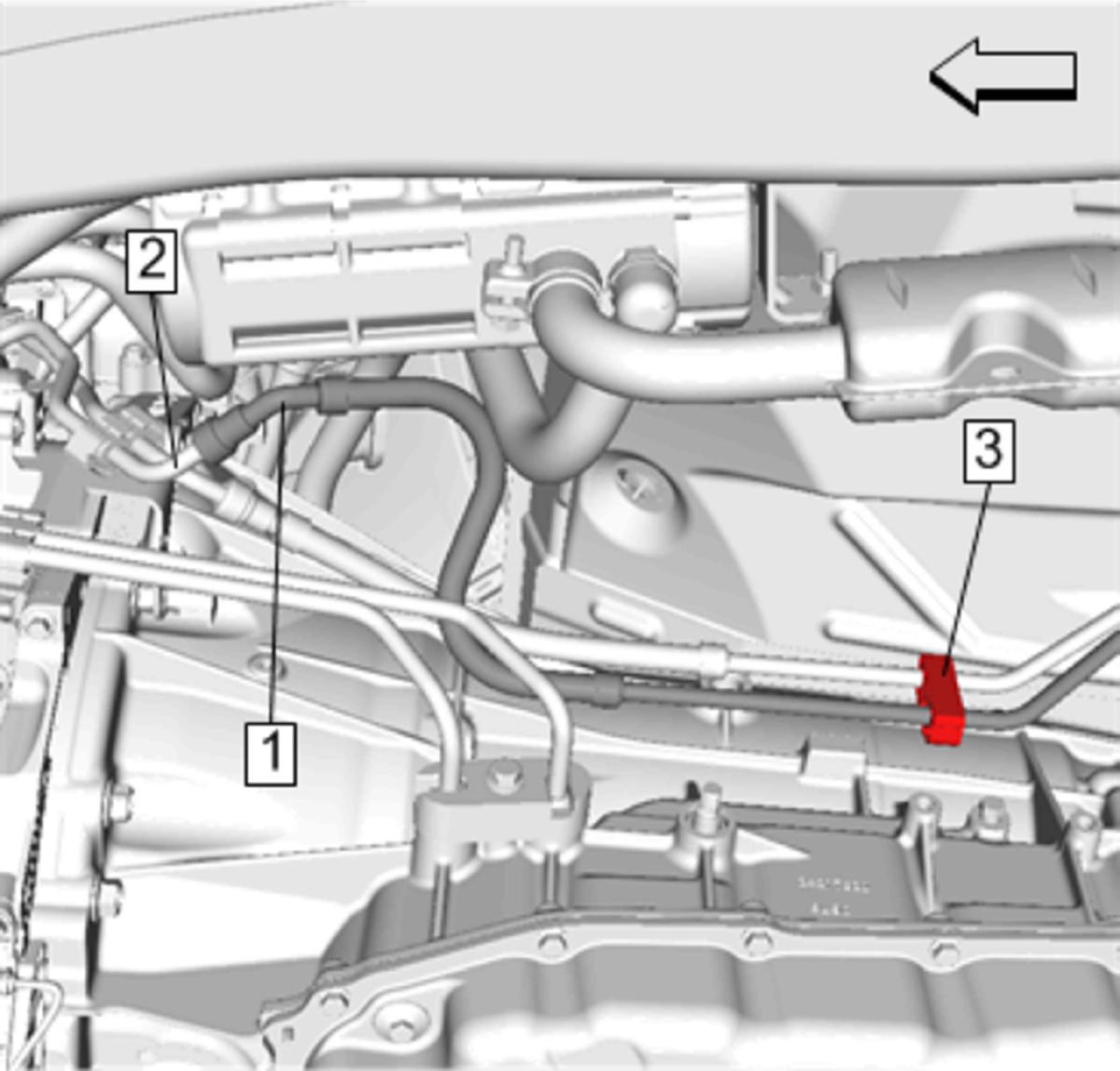

    GM4621696Courtesy of
  5. Connect Fuel Feed Front Pipe @ Fuel Pump Fuel Feed Hose Refer to Metal Collar Quick Connect Fitting Service
  6. Lower the vehicle.
  7. Start engine and check for leaks.
