Installation Procedure

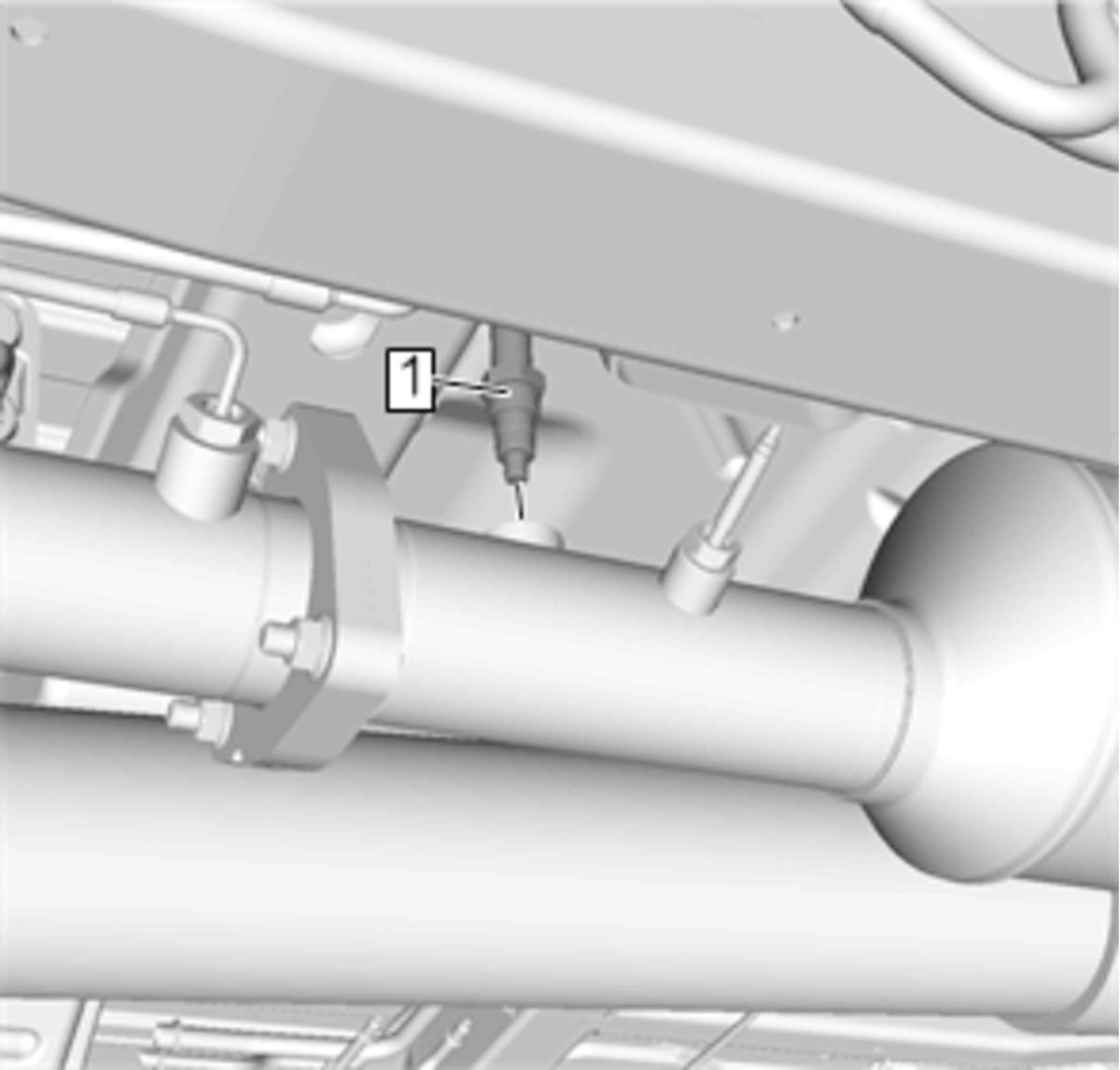

Install Nitrogen Oxides Sensor and tighten 50 N.m. (37 lb ft)

Courtesy of

CAUTION:
Refer to Component Fastener Tightening Caution .

NOTE:
If reinstalling the old sensor, coat the threads with anti-sieze compound. Refer to Adhesives, Fluids, Lubricants, and Sealers

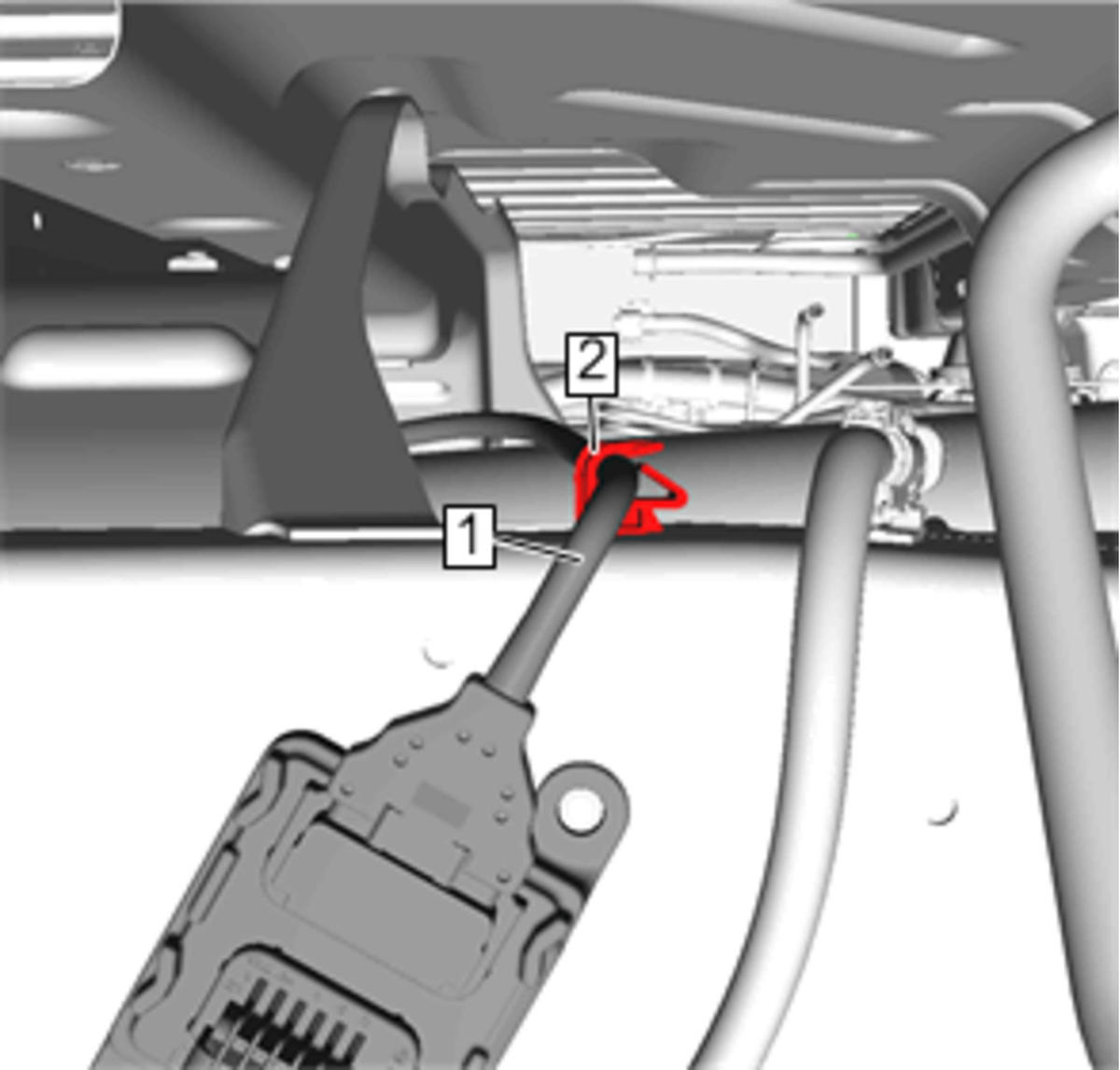

Install Nitrogen Oxides Sensor Cable @ Nitrogen Oxides Sensor Cable Clip

Courtesy of
Nitrogen Oxides Sensor - Move into position

Courtesy of

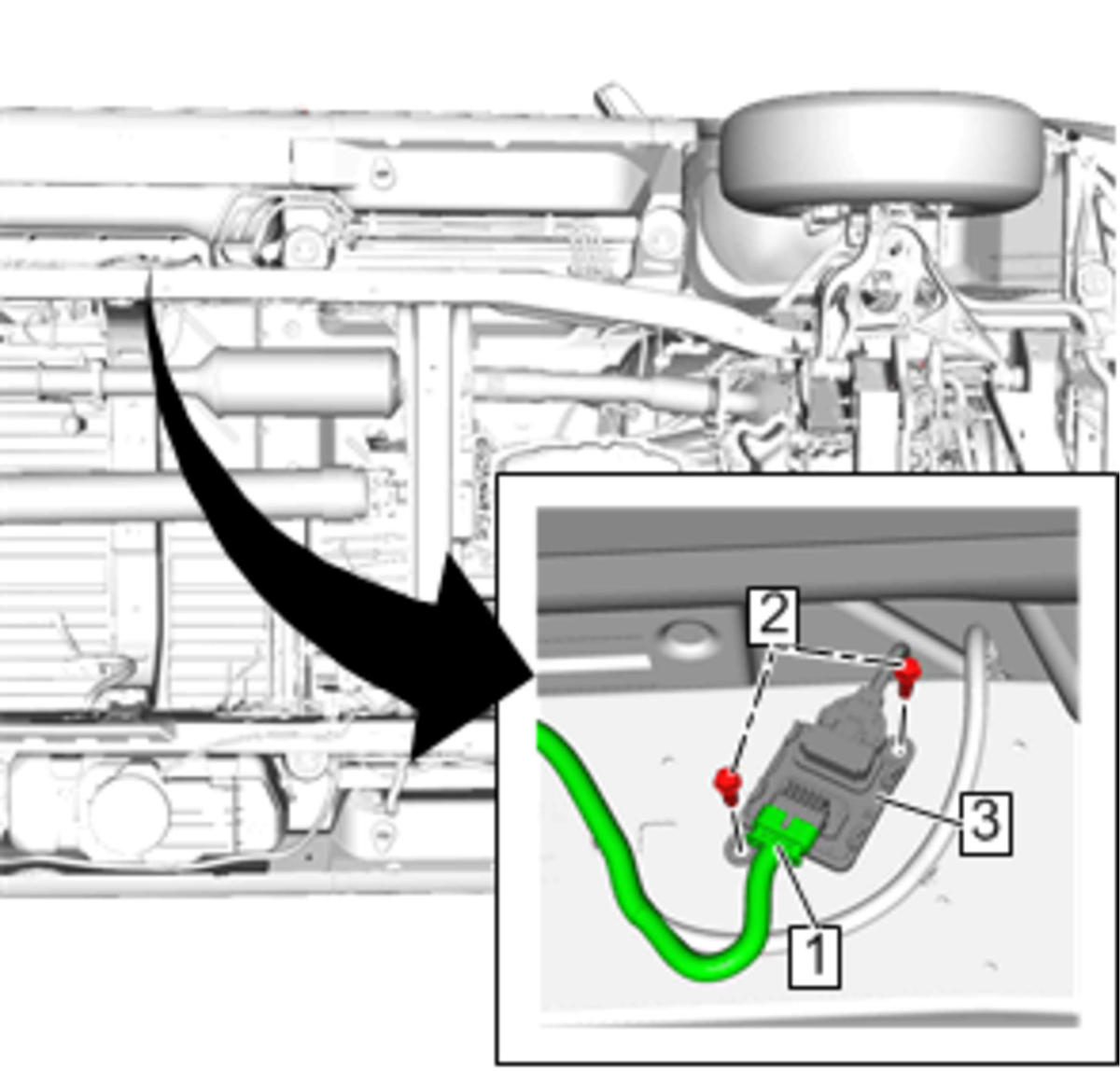

Install Nitrogen Oxides Sensor Bolt [2x] and tighten 10.5 N.m. (93 lb in)
CAUTION:
Refer to Fastener Caution .
Connect Electrical Connector @ Nitrogen Oxides Sensor
Lower the vehicle.
If replacing, perform the NOx sensor 2 reset. Refer to NOx Sensor 2 Reset
If replacing, perform the NOx catalyst reductant loading reset. Refer to NOx Catalyst Reductant Loading Reset
Perform the diesel particulate filter (DPF) regeneration enable. Refer to Diesel Particulate Filter (DPF) Regeneration Enable
