Rear Object Sensing Power, Ground, And Serial Data (UD7)4482744 (Object Detection System And Pedestrian Protection System)

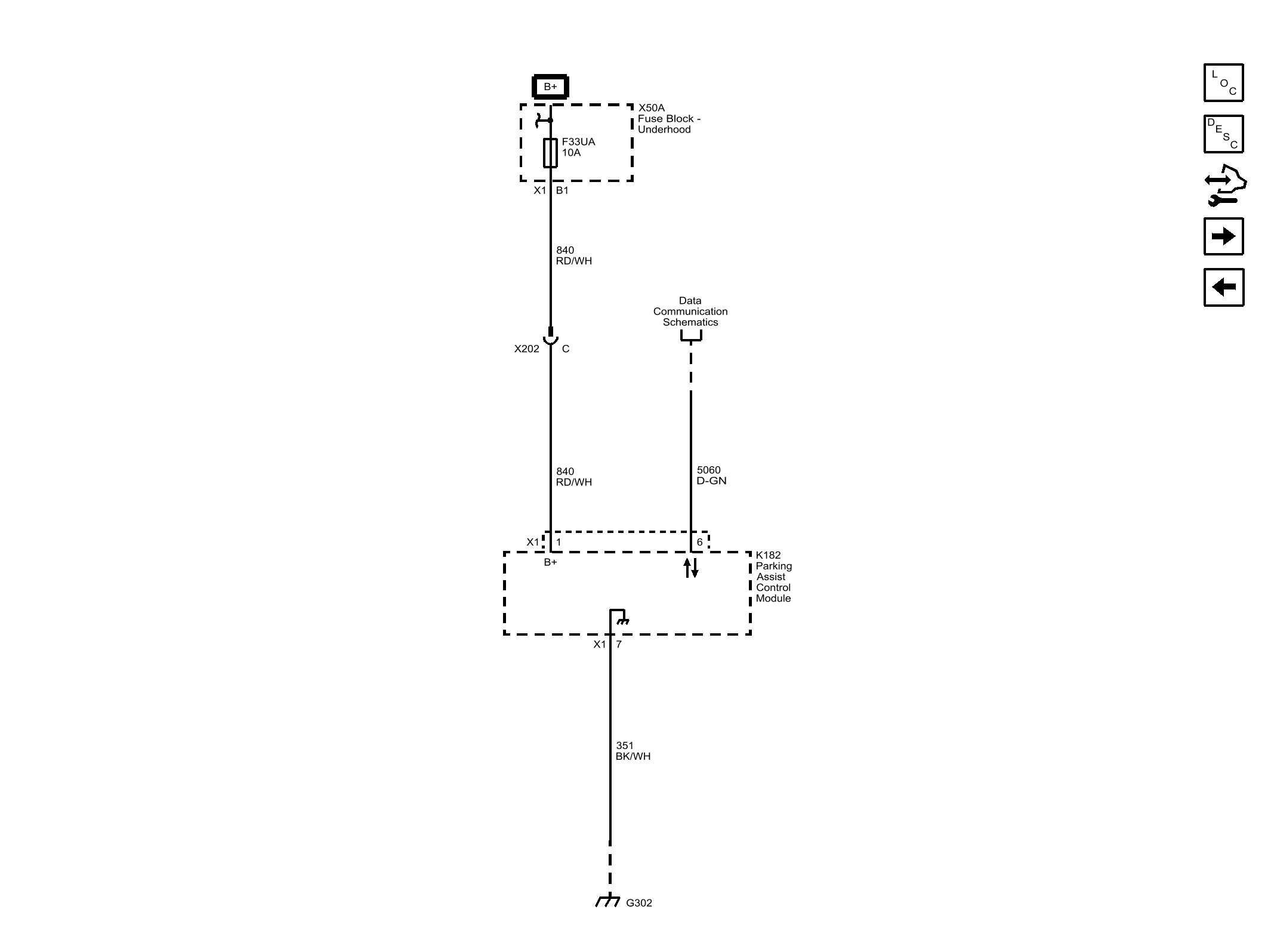

Fig 1: Rear Object Sensing Power, Ground, and Serial Data (UD7)4482744
GM4482464Courtesy of GENERAL MOTORS COMPANY
