Rear Object Sensors (UD7)(Object Detection System And Pedestrian Protection System)
Rear Object Sensors (UD7)(Object Detection System And Pedestrian Protection System)

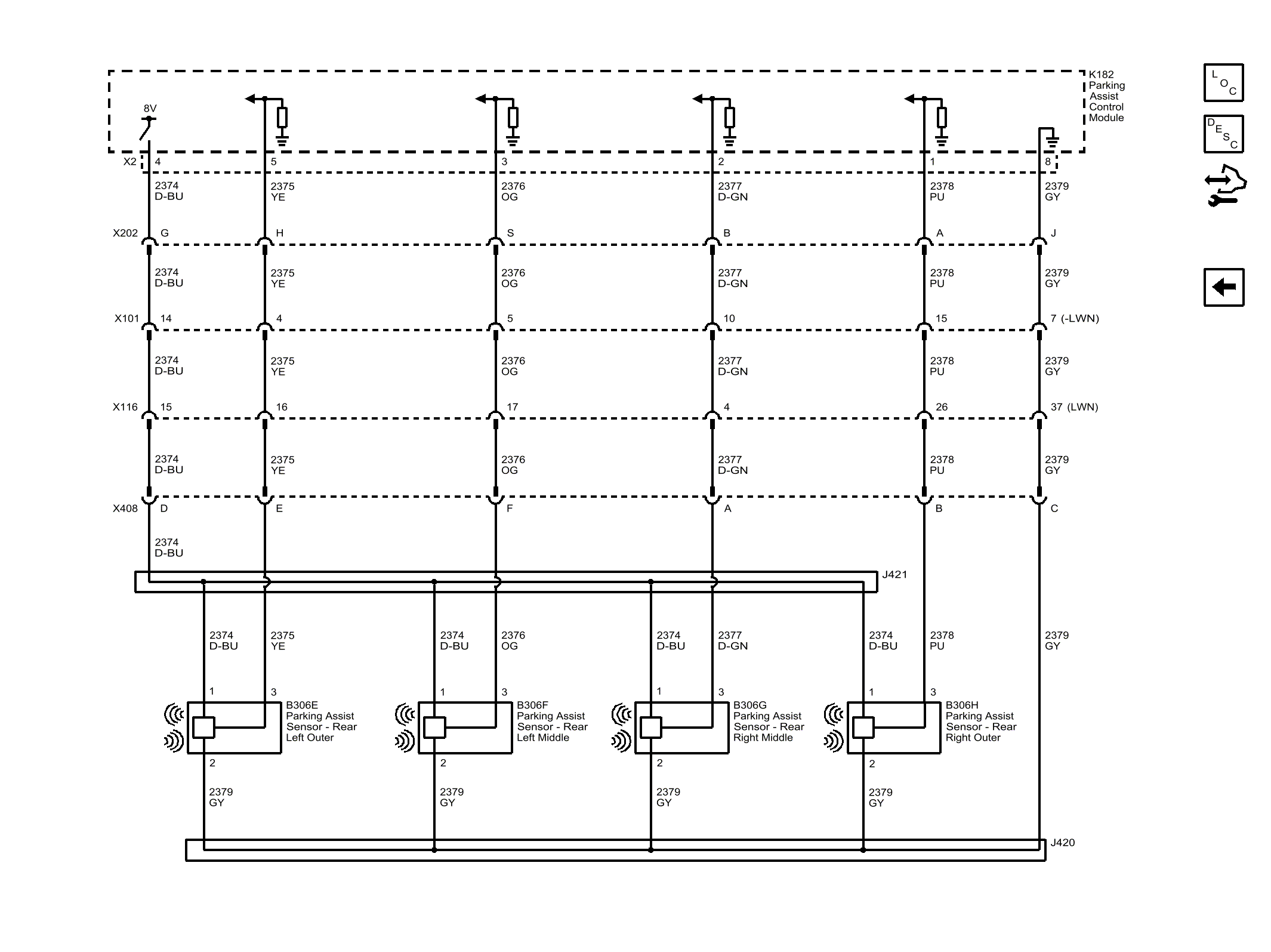

Fig 1: Rear Object Sensors (UD7)
Courtesy of GENERAL MOTORS COMPANY
