Rear Vision Camera (UVC With UI8)(Object Detection System And Pedestrian Protection System)

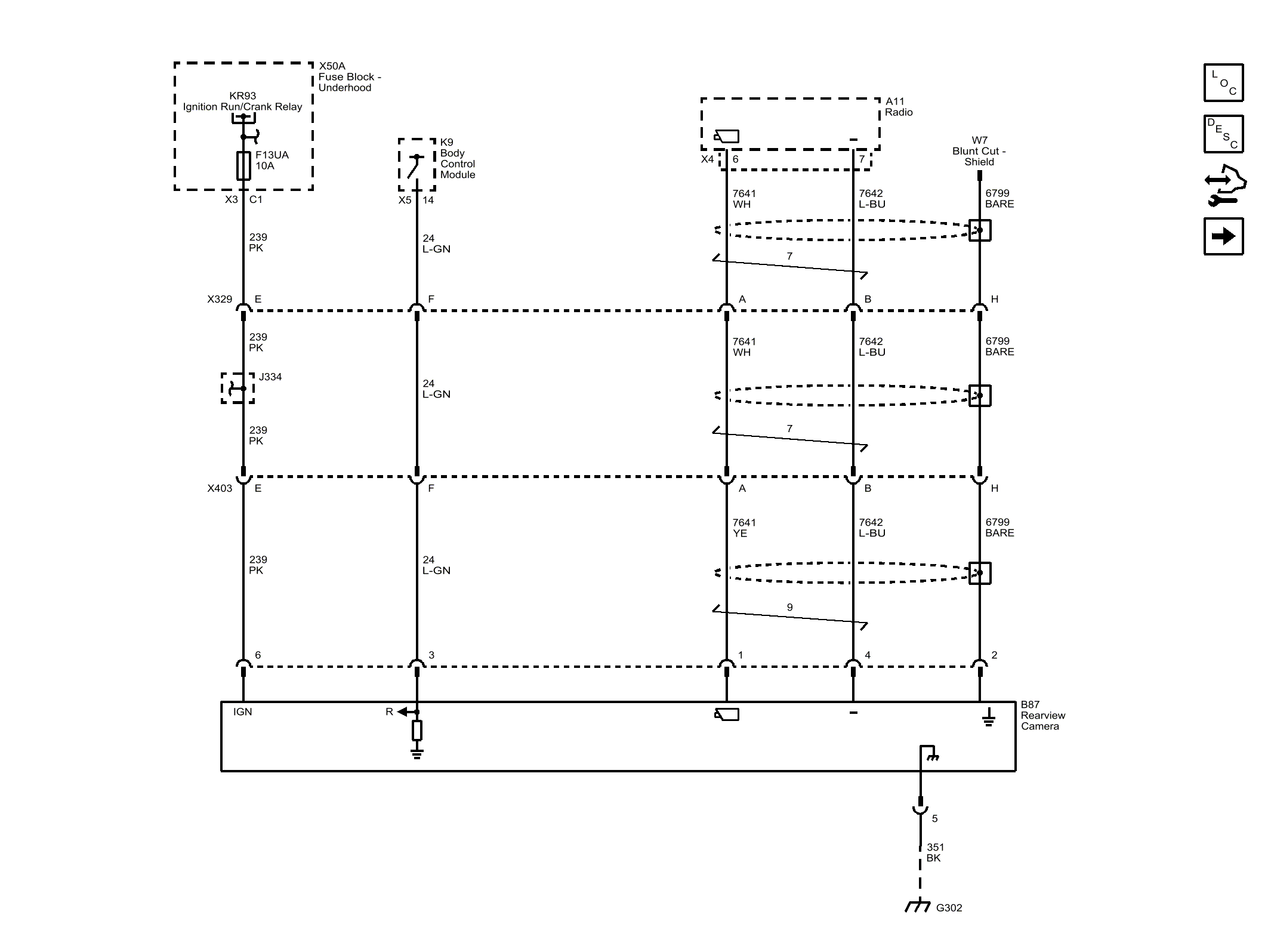

Fig 1: Rear Vision Camera (UVC with UI8)
GM4482440Courtesy of GENERAL MOTORS COMPANY
