HVAC Case Components

HVAC Case Components

Items

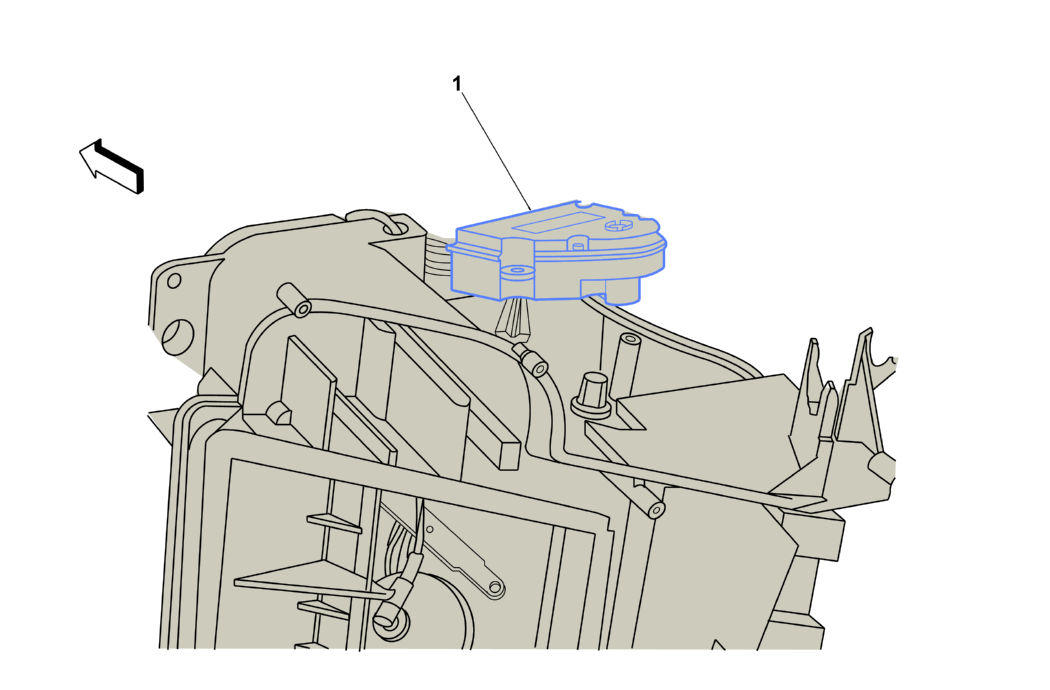

1: M6 Air Temperature Door Actuator M6 Air Temperature Door Actuator
Fig 1: HVAC Case Components
GM4059788Courtesy of GENERAL MOTORS COMPANY
