Accelerator Pedal Position Sensor Replacement

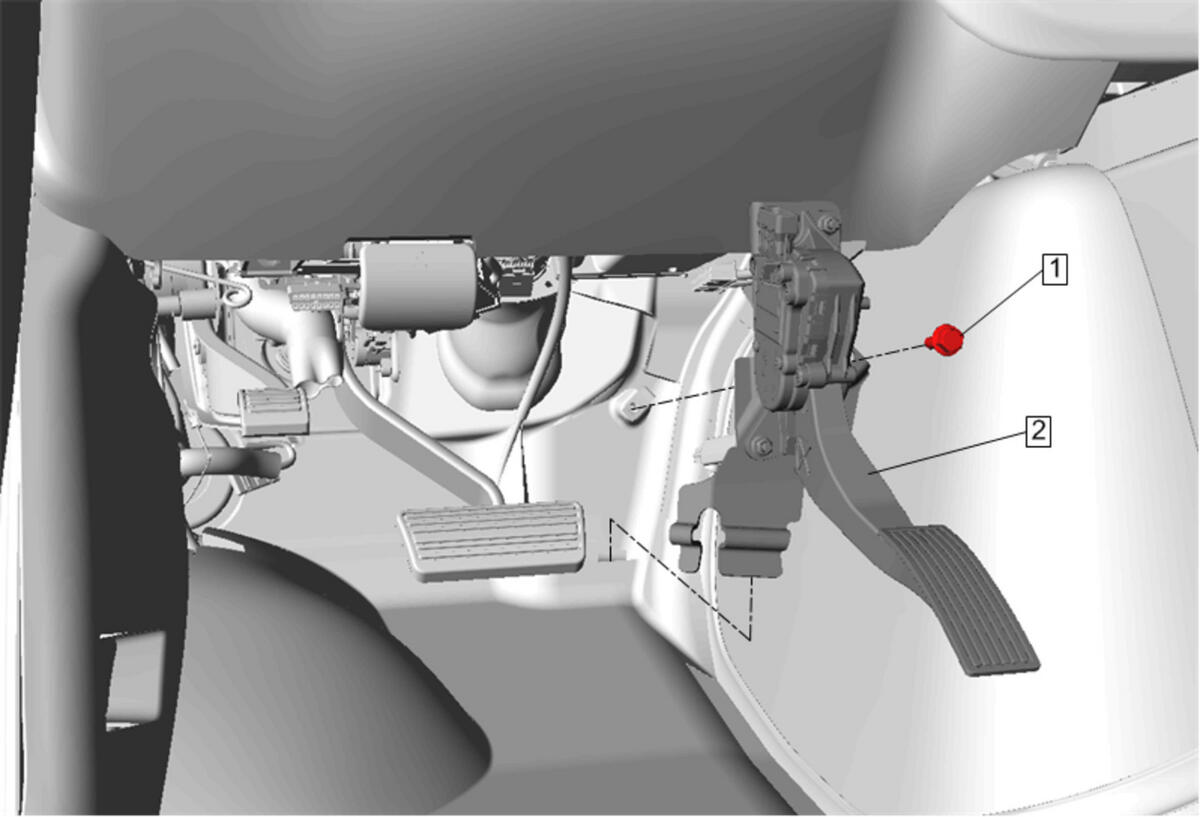

Fig 1: APP Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . tighten  33 N.m. (24 lb ft)
2	Accelerator Pedal Position Sensor Procedure  Disconnect the electrical connector.
