Engine Control Module Bracket Replacement

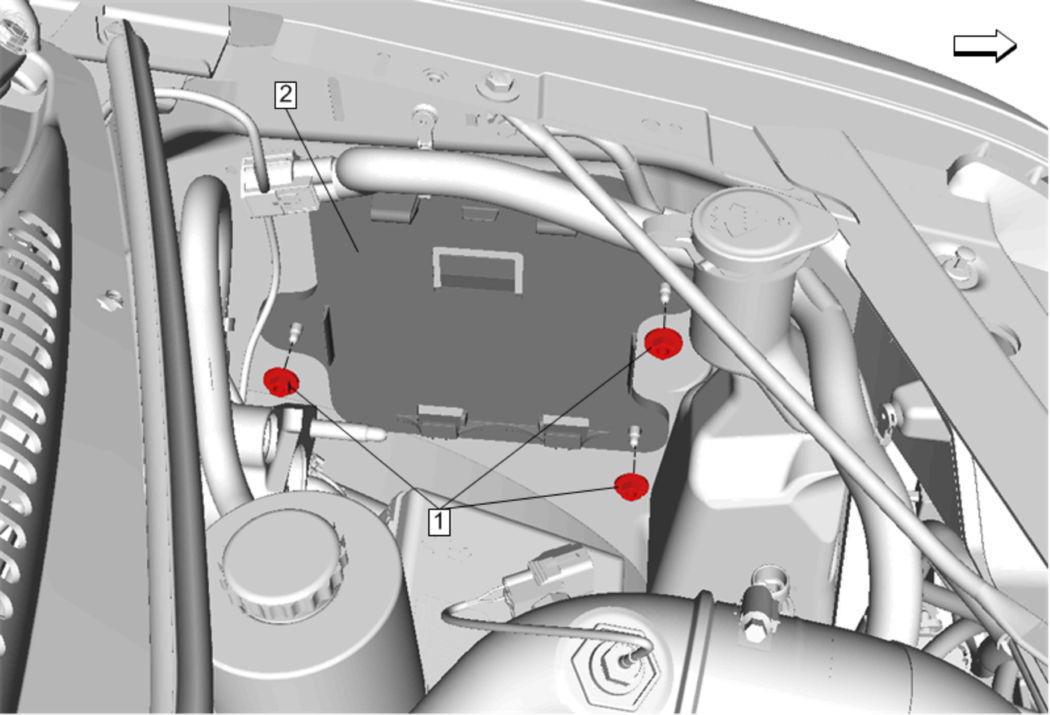

Fig 1: Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Refer to Engine Control Module Replacement
1	Engine Control Module Bracket Nut [3x] CAUTION: Refer to Fastener Caution . tighten  22 N.m. (16 lb ft)
2	Engine Control Module Bracket
